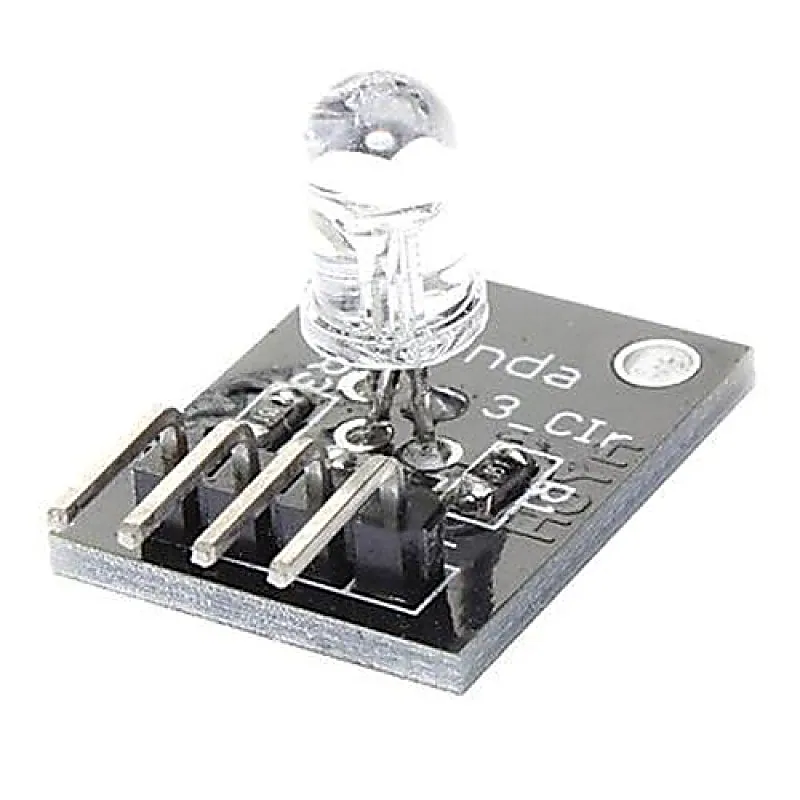

DIP 3 Color LED Module

This module consists of a 5mm RGB LED and three 150 limiting resistorsto prevent burnout. Adjusting the PWM signal on each colour pin will result in different colours. This isa DIP 3 Color LED Module.Through the PWM adjusting, three primary colours can be mixed to obtain different colours. Connect the red pin (R) on the KY-016 to pin 11 on the Arduino. Blue (B) to pin 10, green (G) to pin 9 and ground (-) to GND. Notice that you do not need to use limiting resistors since they are already included on the board. Pin Connection with Arduino: LED module Arduino R Pin11 B Pin 10 G Pin 9 - GND Features : The use of plug-in full-colour LED. RGB trichromatic limiting resistor to prevent burnout. With a variety of single-chip interface. Through the PWM adjusting, three primary colours can be mixed to obtain different colours The working voltage: 5V Package Includes : 1 x DIP 3 Color LED Module. Specifications :- Operating Voltage (VDC) 5 LED Type and Size RGB 5 mm LED drive mode Common Cathode Driver PCB Width 1.5mm Length (mm) 20 Width (mm) 15 Height (mm) 15 Weight (gm) 5
