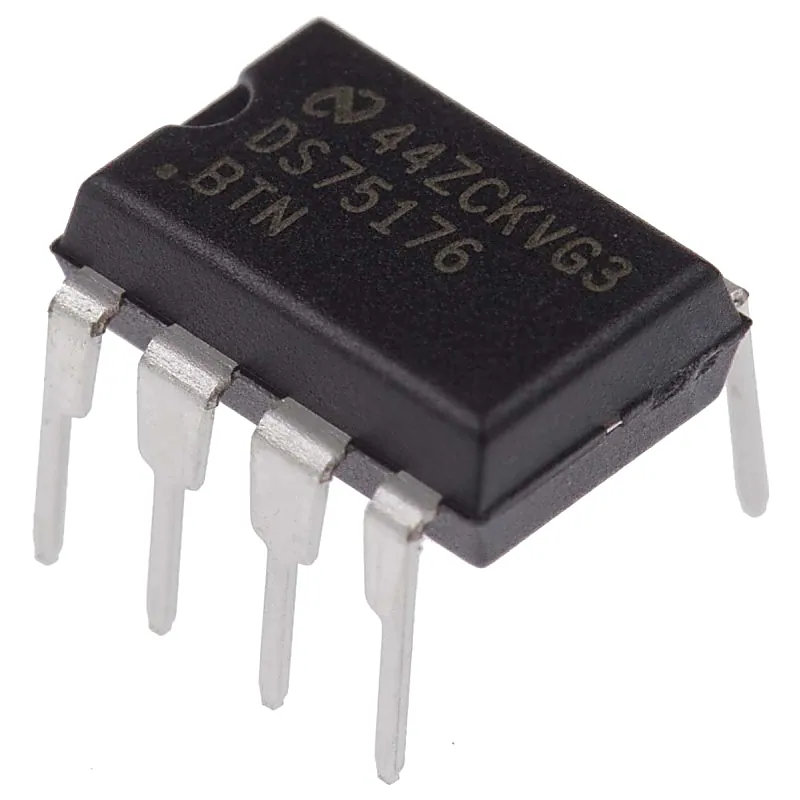

DS75176 RS-422/RS-485 Interface IC DIP-8 Package

The DS75176B is a high speed differential TRI- STATE@bus/line transceiver designed to meet the requirements of EIA standard RS485 with extended common mode range (+12V to —7V), for multipoint data transmission. In addition, it is compatible with RS-422. The driver and receiver outputs feature TRI-STATE capability, for the driver outputs over the entire common mode range of +12V to —7V. Bus contention or fault situations that cause excessive power dissipation within the device are handled by a thermal shutdown circuit, which forces the driver outputs into the high impedance state. DC specifications are guaranteed over the O to 700C temperature and 4.75V to 5.25V supply voltage range. Features:- Meets EIA Standard RS485 for Multipoint Bus Transmission and is Compatible with RS-422. Small Outline (SOIC) Package Option Available for Minimum Board Space. 22 ns Driver Propagation Delays. Single +5V supply. —7V to +12V Bus Common Mode Range Permits Ground Difference Between Devices on the Bus. Thermal Shutdown Protection. High Impedance to Bus with Driver in TRI- STATE or with Power Off, Over the Entire Common Mode Range Allows the Unused Devices on the Bus to be Powered Down. Pin out Compatible with DS3695/A and SN75176A/B. Combined Impedance of a Driver Output and Receiver Input is Less Than One RS485 Unit Load, Allowing up to 32 Transceivers on the Bus. 70 mV Typical Receiver Hysteresis. Specifications:- Parameter Values Supply Voltage, VCC 7V Control Input Voltages 7V Driver Input Voltage 7V Driver Output Voltages +15V/ −10V Receiver Input Voltages (DS75176B) +15V/ −10V Receiver Output Voltage 5.5V Storage Temperature Range −65°C to +150°C Related Document:- DS75176 IC Datasheet
