Ebike MY1016 350W 24V 2750RPM DC motor
Ebike MY1016 350W 24V 2750RPM DC motor

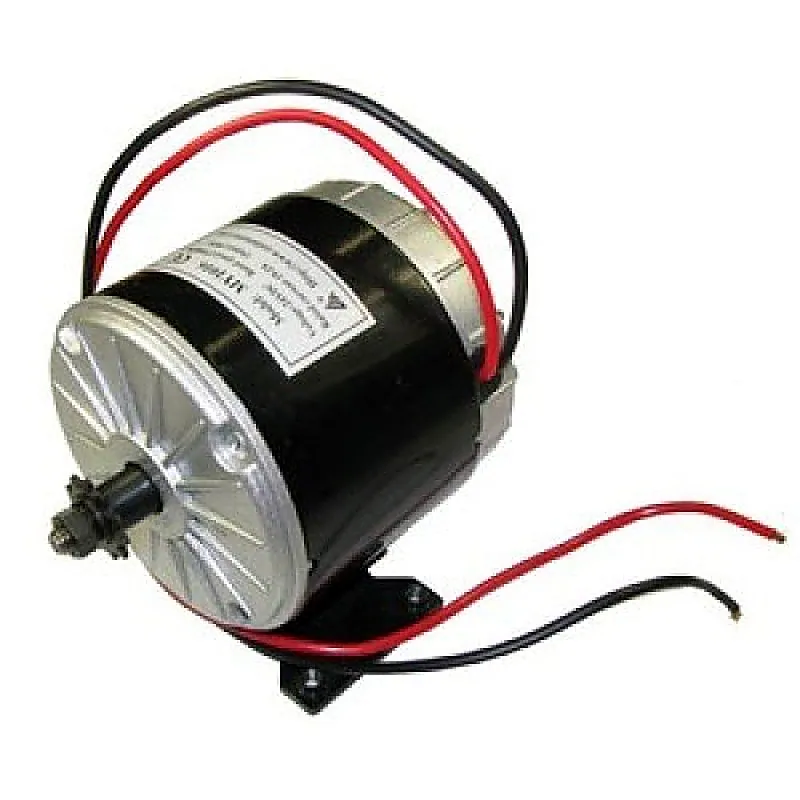

Ebike MY1016 350W 24V 2750RPM DC motor is used in an electric scooter and bike motor. It Comes with an 11-tooth, #25 chain sprocket as well as a 4-bolt mounting bracket on the base. As this is DC motor it is capable of rotation in either the clockwise or counterclockwise direction by just reversing
+ 18% GST (added at checkout)
In stock — 9 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
Ebike MY1016 350W 24V 2750RPM DC motor is used in an electric scooter and bike motor. It Comes with an 11-tooth, #25 chain sprocket as well as a 4-bolt mounting bracket on the base. As this is DC motor it is capable of rotation in either the clockwise or counterclockwise direction by just reversing the battery polarity to the motor and can be speed controlled. If you want to speed control these, please take a look at our available speed controllers. Recommended Product with this Motor: Motor Controller 24V for MY1016 350W 24V/36V/48V EBike Twist Throttle Grip Accelerator for E-bike Brake for Ebike Package Includes : 1 x Ebike MY1016 350W 24V 2750RPM DC motor. Specifications :- Model MY1016 350W Operating Power 350W Operating Voltage (VDC) 24 Rated Current(A) 2.5 No load Speed (RPM) 3300 Rated Speed (RPM) 2750 Rated Torque (Kg-Cm) 11.1 Stall Torque(Kg-Cm) 55.11 Weight (Kg) 2.56 Efficiency 78%. Shipment Dimensions 20x15x10 cm
