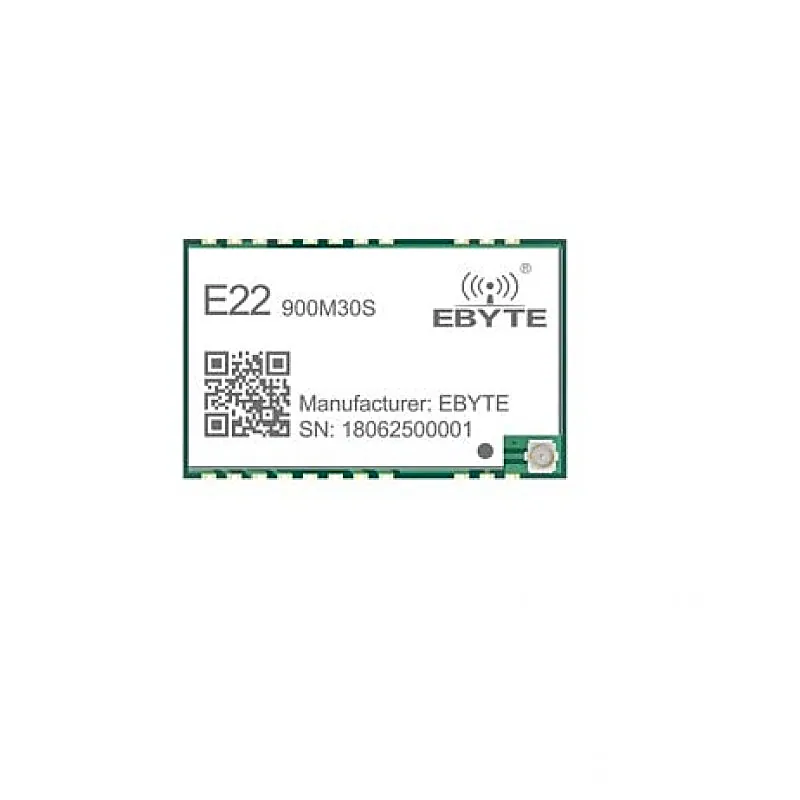

EBYTE E22-900M30S Long Distance Sx1262 Sx1268 1W 900Mhz New Lora Module SMD Transceiver

The E22-900M30S is a high-performance LoRa transceiver module operating in the 850-930 MHz frequency range. It features the SX1262 and SX1268 RF chips from Semtech, offering versatile modulation options including LoRa and traditional GFSK. With a maximum output power of 30 dBm, it supports communication distances up to 12 km. The module interfaces via SPI and weighs approximately 4.9 grams. It is one of the pioneering modules in China to integrate the SX1262 chip, making it suitable for long-range, low-power communication applications. Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product. Features: Frequency Range: 850-930 MHz Output Power: Up to 30 dBm (1 watt) Communication Range: Up to 12 km Transceiver Chips: SX1262 and SX1268 Modulation Methods: LoRa and GFSK Interface: SPI (Serial Peripheral Interface) Power Efficiency: Low power consumption Size and Weight: Compact SMD package, 4.9 grams High Sensitivity: Reliable long-range communication Applications: Suitable for remote sensing, telemetry, and IoT networks
