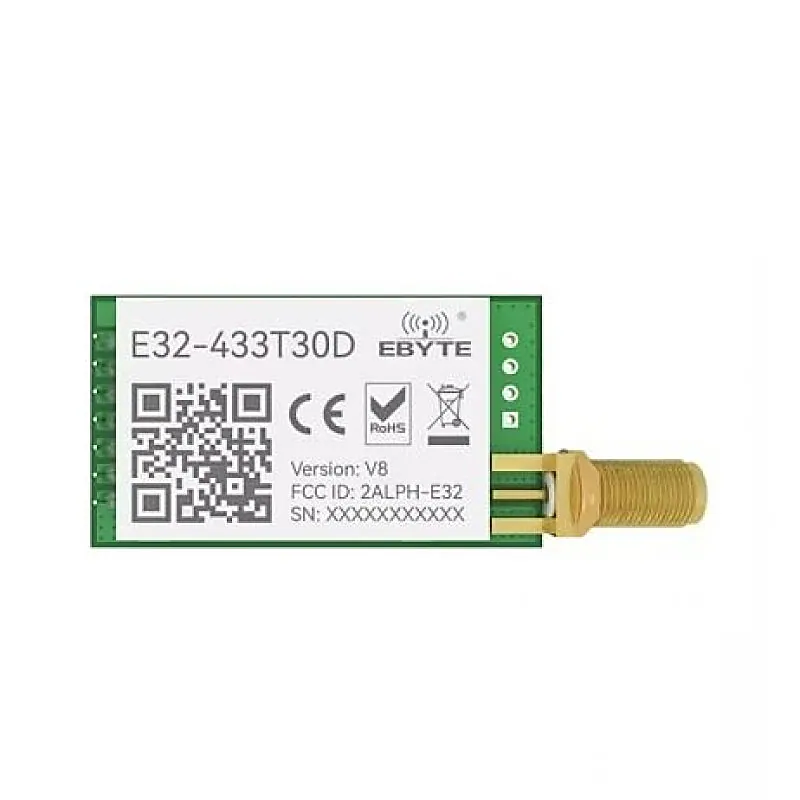

EBYTE E32-433T30D-V8 LoRa 433MHz UART IoT Long Range Wireless Transceiver Transmitter Receiver EBYTE E32-433T30D V8 Module 1W SMA Antenna

The E32-433T30D LoRa IoT Module is a high-performance wireless solution for IoT applications, such as smart parking sensors. Utilizing LoRa spread spectrum technology, it offers long-range communication with enhanced anti-interference capabilities. The Long Range Wireless Transceiver Transmitter Receiver Operating in the 410-441 MHz frequency range, The Long Range Wireless Transceiver Transmitter Receiver provides a transmitting power of 21-30 dBm, achieving up to 8 km in open air. It supports an air data rate of 0.3k~19.2kbps and uses a UART interface. With a low power consumption (106mA transmitting, 15mA receiving), its ideal for energy-efficient applications. The module operates between -40C to +85C Features: Frequency Range: 410~441 MHz (default: 433 MHz) Transmitting Power: 21~30 dBm (about 1W) Range: Up to 8 km (in open air with maximum power, 5dBi antenna) Air Data Rate: 0.3kbps to 19.2kbps (programmable) Communication Interface: UART (Baud rate: 1200~115200, default 9600) Antenna Type: SMA-K Power Supply: 3.3V to 5V (5V ensures maximum power output) Low Power Consumption: 106mA (transmitting), 15mA (receiving), 4A (when off) Operating Temperature: -40C to +85C Buffer: 512 bytes (automatically sub-packaging with 58 bytes per package) Low Power Shutdown: Automatically turns off with 4A current draw when inactive. Package Includes: 1 x EBYTE E32-433T30D-V8 LoRa 433MHz UART IoT Long Range Wireless Transceiver Transmitter Receiver EBYTE E32-433T30D V8 Module 1W SMA Antenna
