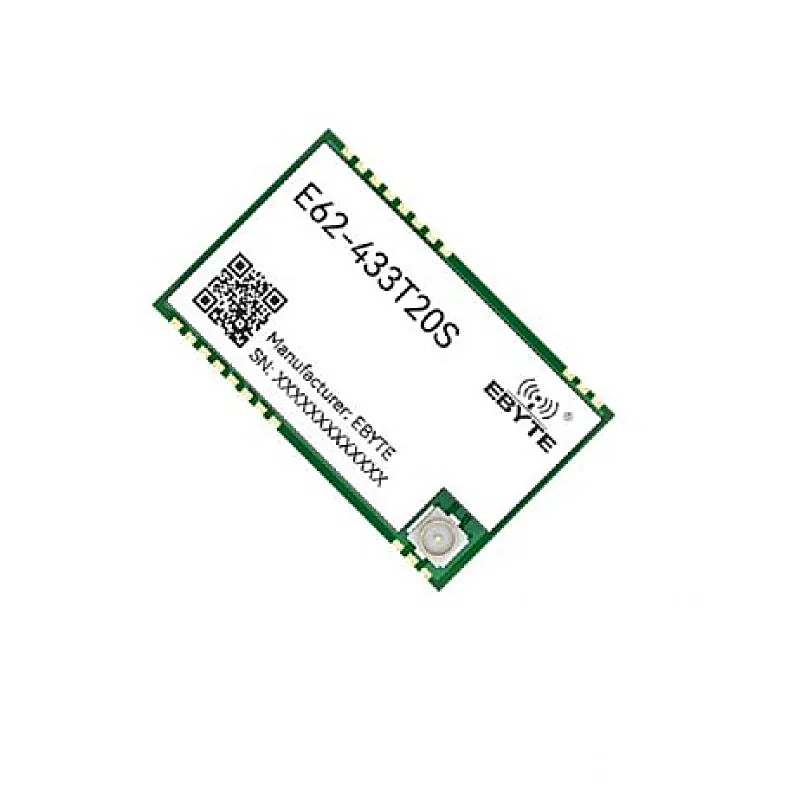

EBYTE E62-433T20S Wireless Module Automatic Frequency Hopping Transparent Transmission

EBYTE E62-433T20S Wireless Module Automatic Frequency Hopping Transparent Transmission is a full-duplex wireless data transmission module with point-to-point transmission and UART interface. It has transparent transmission mode, operates in the 425~450.5MHz frequency band (default 433 MHz), has a transmission power of 100mW, full-duplex, TTL level output, is compatible with 3.3V and 5V IO port voltages, uses a serial port for data transmission and reception, and lowers the threshold for wireless applications. The EBYTE E62-433T20S Wireless Module Automatic Frequency Hopping Transparent Transmission module has a frequency hopping spread spectrum function (FHSS). During the data transmission process, the module will automatically synchronize the frequency hopping algorithm in up to 52 frequency points (users can customize the frequency modulation number and sequence), which greatly improves the modules anti-interference ability. The 433M frequency hopping technology is in a leading position in the industry. Features: Full-Duplex High-Speed Transmission: Enables simultaneous two-way communication, sending and receiving data concurrently without waiting. This is achieved through FHSS (Frequency Hopping Spread Spectrum) and TDD (Time Division Duplexing) technologies. High Data Rate & Unlimited Packet Length: Supports high-speed data transfer with no restrictions on packet size. Transparent Data Transmission: Data is transmitted without modification, simplifying integration. The module itself has an address, facilitating communication between specific modules. Automatic Frequency Hopping: Dynamically avoids interfered frequencies, ensuring reliable communication even in noisy environments. This provides strong anti-interference capabilities. Long-Term Stability: Maintains stable frequency operation over time and across a wide temperature range (-40C to 85C). Paired Operation: Modules with the same address and channel work together in pairs for communication. Package Includes: 1 x EBYTE E62-433T20S High-Speed Full-Duplex Wireless Module Automatic Frequency Hopping Transparent Transmission.
