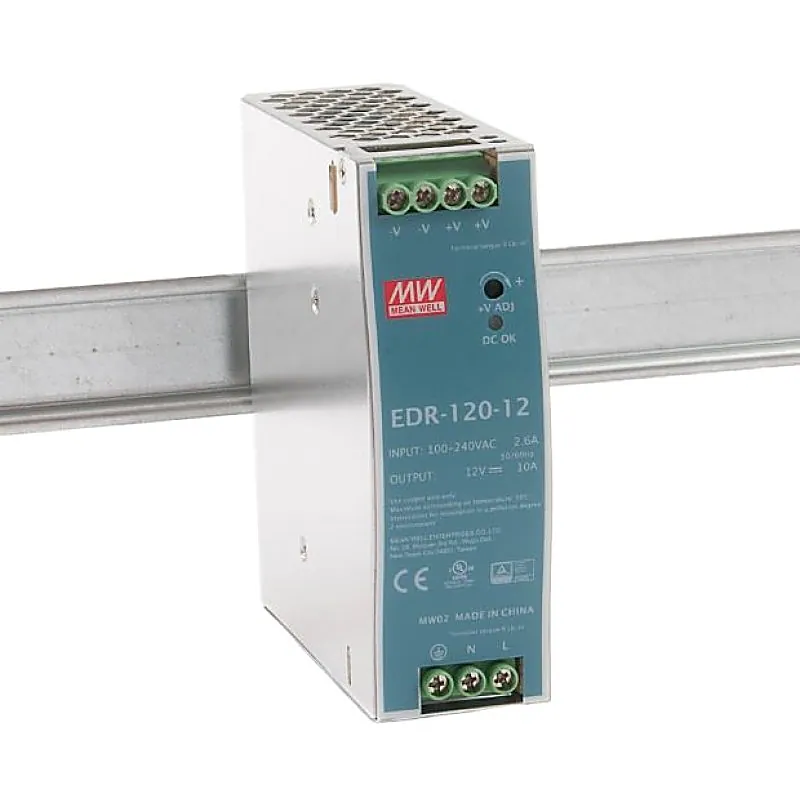

EDR-120-12 Mean well SMPS - 12V 10A 120W Din Rail Metal Power Supply

Key Specifications:- Output Voltage 12V Type DIN Rail Type Approx. Wattage 120W Features Standard Series EDR(Economical) Mechanical Form DIN Rail Warranty 2 Years Warranty IP Level Non-Waterproof Input Voltage 100-240V auto-select Features:- Universal AC input / Full range Protections: Short circuit / Overload / Over voltage / Over temperature Cooling by free air convection Can be installed on DIN rail TS35 / 7.5 or 15 UL508 (industrial control equipment) listed EN61000-6-2 (EN50082-2) industrial immunity level 100% full load burn-in test Low cost 3 years warranty for NDR series 2 years warranty for EDR series Specifications:- AC input voltage range 90~264VAC; 127~370VDC AC inrush current (max.) Cold start, 35A at 230VAC DC adjustment range 12V: 12~14V, 24V: 24~28V, 48V: 48~55V Current adjustment range 10%~100% rated output current adjustable by 1~10Vdc, PWM signal or resistance Overload protection 105%~130% Constant current limiting, auto-recovery Over voltage protection 14V: 14~17V, 24V: 29~33V, 48V: 56~65V Shut down o/p voltage, re-power on to recover Over temperature protection Shut down o/p voltage, re-power on to recover Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC Working temperature -20~+60!aC (refer to output derating curve Safety standards UL60950-1, TUV EN60950-1 approved EMC standards EN55022 classA, EN61000-3-2(125W for EDR-150),3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2) Connection (screw DIN terminal) I/P: 3 poles, O/P: 4 poles Dimension (LxWxH) (mm) 40x 125.2x 113.5 Related Documents:- EDR-120 Datasheet EDR-120-12 Test Report CE Certificate (EDR-120) UL Certificate (EDR-120) TUV Certificate (EDR-120) EMC Certificate(EDR-120)
