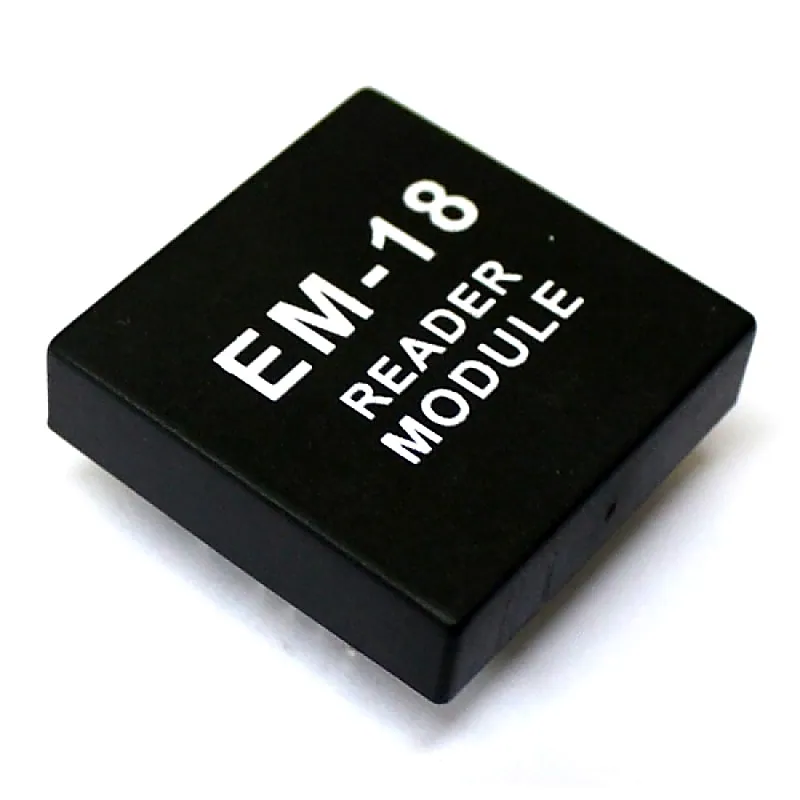

EM-18 RFID Reader Module
EM-18 RFID Reader Module
Radio-frequency identification (RFID) is the wireless non-contact use of radio-frequency electromagnetic fields to transfer data, for the purposes of automatically identifying and tracking tags attached to objects. The tags contain electronically stored information. This EM-18 RFID Reader is a Tiny,
+ 18% GST (added at checkout)
In stock — 363 units ready
- Operating Voltage: 5V DC Supply
- Reading Distance: 6-10 cm.
- Read frequency: 125 kHz.
- EM4001 64 – bit RFID tag compatible.
- 9600bps ASCII output.
- Current : <50 mA
- Operating Frequency : 125 Khz
- Read Distance : 5 cm
- Compatible Tags : 125KHz EM4100 Tags
- Size : 32mm(length) * 32mm(width) * 8mm(height)
- Smart Access Control System.
- Card Based Entry System.
- Attendance System.
- DIY projects requiring need for RFID based System
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
Radio-frequency identification (RFID) is the wireless non-contact use of radio-frequency electromagnetic fields to transfer data, for the purposes of automatically identifying and tracking tags attached to objects. The tags contain electronically stored information. This EM-18 RFID Reader is a Tiny, simple to use RFID reader module. With a built in antenna, the only holdup is the 2mm pin spacing. Power the module, hold up a card, and get a serial string output containing the unique ID of the card. It has TTL output. Specifications and Features of EM-18 RFID Reader Module:- Operating Voltage: 5V DC Supply Reading Distance: 6-10 cm. Read frequency: 125 kHz. EM4001 64 – bit RFID tag compatible. 9600bps ASCII output. Current : <50 mA Operating Frequency : 125 Khz Read Distance : 5 cm Compatible Tags : 125KHz EM4100 Tags Size : 32mm(length) * 32mm(width) * 8mm(height) Application of EM-18 RFID Reader Module :- Smart Access Control System. Card Based Entry System. Attendance System. DIY projects requiring need for RFID based System
