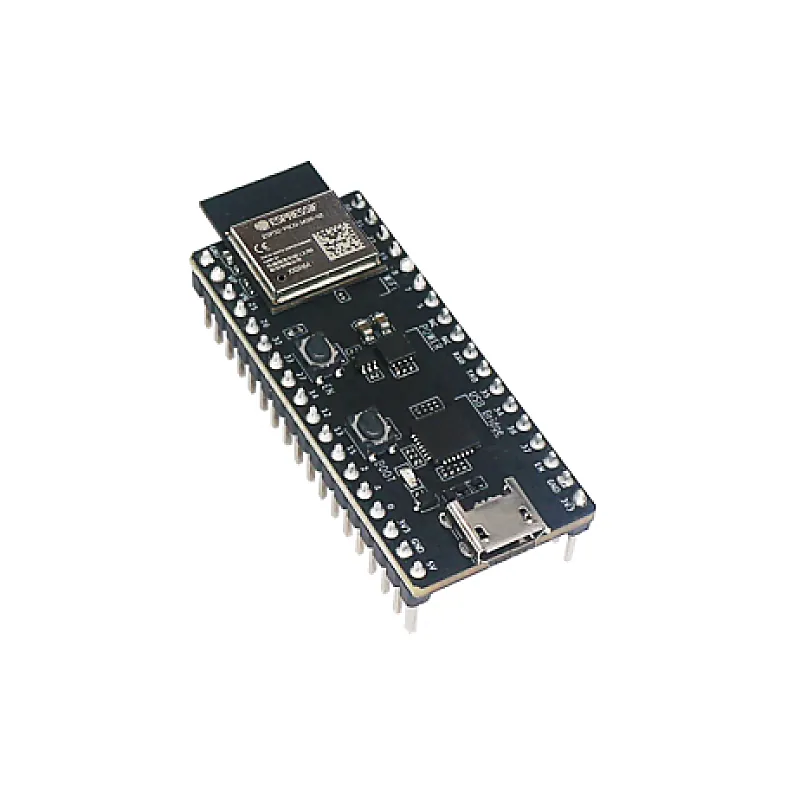

Espressif ESP32-PICO-DevKitM-2 Development board

ESP32-PICO-DevKitM-2 is an ESP32-based development board produced byEspressif. The core of this board isESP32-PICO-MINI-02(02U)module with complete Wi-Fi and Bluetooth functionalities. The development board features a USB-to-UART Bridge circuit which allows developers to connect the board to a computers USB port for flashing and debugging. All the IO signals and system power on ESP32-PICO-MINI-02(02U) are led out to two rows of 18 x 0.1 header pads on both sides of the development board for easy access. For compatibility with Dupont wires, all header pads are populated with two rows of male pin headers Note:- This pin is connected to the pin of the USB bridge chip on the board. 32.768 kHz crystal oscillator: a) input b) output The operating voltage of ESP32-PICO-DevKitM-2s embedded SPI flash is 3.3 V. Therefore, the strapping pin MTDI should be pulled down during the module power-on reset. If connected, please make sure that this pin is not held up on reset. Features: The complete ESP32 system on a chip (ESP32 SoC) has been integrated into the module Users can also select the board with ESP32-PICO-MINI-02U soldered V-to-3.3V Low dropout voltage regulator (LDO) CP2102N, single-chip USB-UART bridge that offers up to 3 Mbps transfers rates All the pins on ESP32-PICO-MINI-02 are broken out to pin headers You can program ESP32 to enable multiple functions such as PWM, ADC, DAC, I2C, I2S, SPI USB-to-UART bridge: CP2102N, single-chip USB-UART bridge that offers up to 3 Mbps transfers rates Antenna: On board PCB antenna Some useful link Package Includes: 1 x Espressif ESP32-PICO-DevKitM-2 Development board
