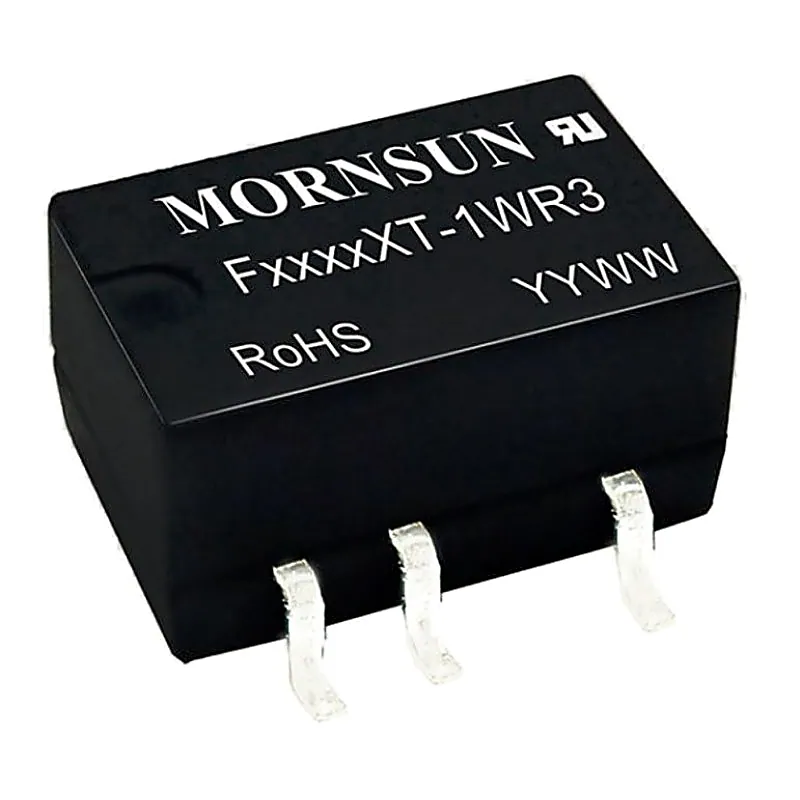

F0512XT-1WR3 Mornsun 5V to 12V DC-DC Converter 1W Power Supply Module - Compact SMD Package
F0512XT-1WR3 Mornsun 5V to 12V DC-DC Converter 1W Power Supply Module - Compact SMD Package
F0512XT-1WR3 series are designed for use in distributed power supply systems and especially suitable in applications such as pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits. Features:- Continuous short-circuit protection No-load input current a
+ 18% GST (added at checkout)
In stock — 36 units ready
- Continuous short-circuit protection
- No-load input current as low as 5mA
- Operating ambient temperature range: -40°C to +105°C
- High efficiency up to 85%
- Compact SMD package
- I/O isolation test voltage 3k VDC
- Industry standard pin-out
- IEC62368, UL62368, EN62368 approved
- I/p Voltage range:4.5-5.5vdc
- Nominal voltage:5Vdc
- O/p voltage:12V
- O/p current:84/9(mA)
- Wattage:1W
- Isolation:3kVdc
- Package : SMD
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
F0512XT-1WR3 series are designed for use in distributed power supply systems and especially suitable in applications such as pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits. Features:- Continuous short-circuit protection No-load input current as low as 5mA Operating ambient temperature range: -40°C to +105°C High efficiency up to 85% Compact SMD package I/O isolation test voltage 3k VDC Industry standard pin-out IEC62368, UL62368, EN62368 approved Specifications:- I/p Voltage range:4.5-5.5vdc Nominal voltage:5Vdc O/p voltage:12V O/p current:84/9(mA) Wattage:1W Isolation:3kVdc Package : SMD Package Includes:- 1 x F0512XT-1WR3 Mornsun 5V to 12V DC-DC Converter 1W Power Supply Module - Compact SMD Package Download DATASHEET : Download
