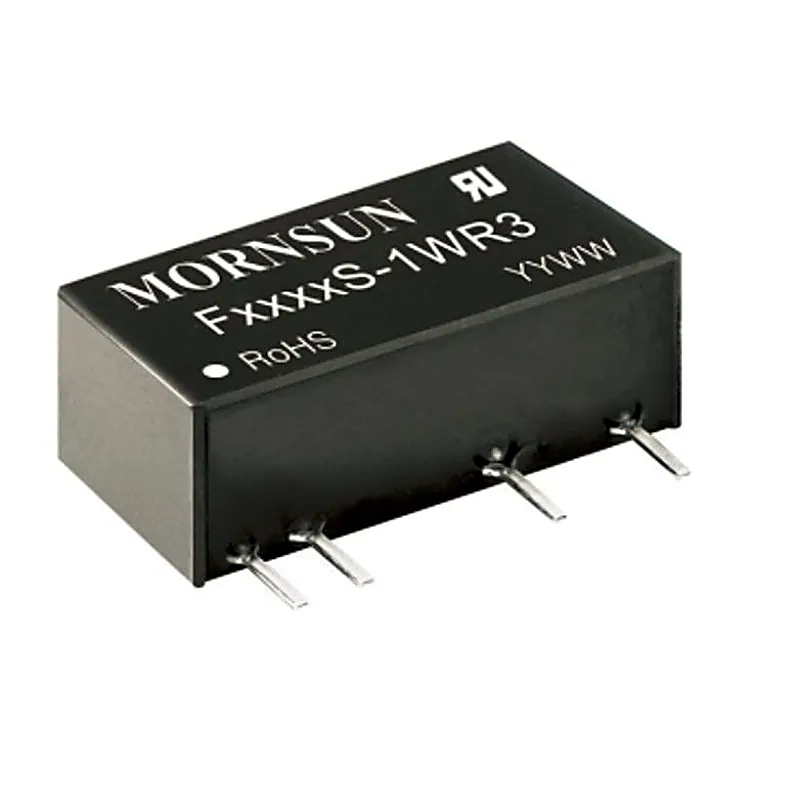

F0515S-1WR3 Mornsun 5V to 15V DC-DC Converter 1W Power Supply Module - SIP Package
F0515S-1WR3 Mornsun 5V to 15V DC-DC Converter 1W Power Supply Module - SIP Package
F0515S-1WR3 series are specially designed for applications where an isolated (two isolated) voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits. Features:- Continuous
+ 18% GST (added at checkout)
In stock — 34 units ready
- Continuous short-circuit protection
- No-load input current as low as 5mA
- Operating ambient temperature range: -40°C to +105°C
- High efficiency up to 85%
- I/O isolation test voltage: 3K VDC
- Industry standard pin-out
- SIP package
- IEC62368, UL62368, EN62368 approved
- I/p Voltage range:4.5-5.5vdc
- Nominal voltage:5Vdc
- O/p voltage:15V
- O/p current:67/7(mA)
- Wattage:1W
- Isolation:3kVdc
- Package: SIP
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
F0515S-1WR3 series are specially designed for applications where an isolated (two isolated) voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits. Features:- Continuous short-circuit protection No-load input current as low as 5mA Operating ambient temperature range: -40°C to +105°C High efficiency up to 85% I/O isolation test voltage: 3K VDC Industry standard pin-out SIP package IEC62368, UL62368, EN62368 approved Specifications:- I/p Voltage range:4.5-5.5vdc Nominal voltage:5Vdc O/p voltage:15V O/p current:67/7(mA) Wattage:1W Isolation:3kVdc Package: SIP Package Includes:- 1 x F0515S-1WR3 Mornsun 5V to 15V DC-DC Converter 1W Power Supply Module - SIP Package Download DATASHEET : Download
