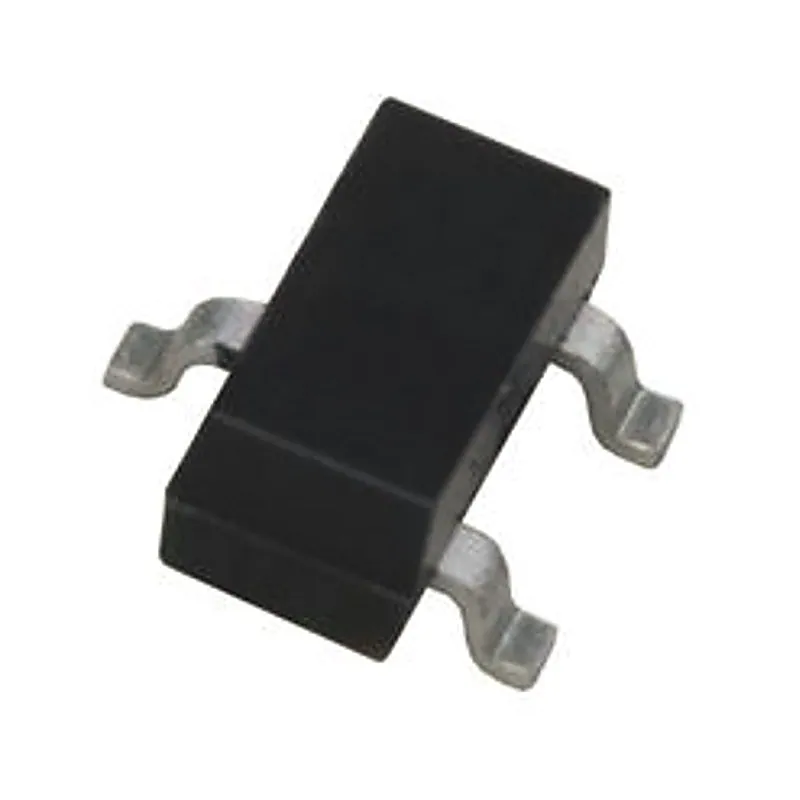

FDN338P MOSFET - (SMD SOT-23 Package) - 20V 1.6A P-Channel MOSFET
FDN338P MOSFET - (SMD SOT-23 Package) - 20V 1.6A P-Channel MOSFET
This P-Channel 2.5V specified MOSFET uses advanced low voltage Power Trench process. It has been optimized for battery power management applications. Features:- -1.6 A, -20 V. RDS(ON) = 115 mΩ @ VGS = -4.5V RDS(ON) = 155 mΩ @ VGS = -2.5V Fast Switching Speed High Performance Trench Technology for Ex
+ 18% GST (added at checkout)
In stock — 2719 units ready
- -1.6 A, -20 V.
- Fast Switching Speed
- High Performance Trench Technology for Extremely Low RDS(ON)
- Super SOT-23 provides Low RDS(ON) and 30% Higher Power Handling Capability than SOT23 in the same Footprint
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
- Battery management
- Load switch
- Battery protection
- Drain-Source Voltage: -20V
- Gate-Source Voltage: ±8V
- Drain Current – Continuous: -1.6A
- Drain Current – Pulsed: -5A
- Maximum Power Dissipation: 0.5-0.46W
- Operating and Storage Junction Temperature Range: -55 to +150°C
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
This P-Channel 2.5V specified MOSFET uses advanced low voltage Power Trench process. It has been optimized for battery power management applications. Features:- -1.6 A, -20 V. RDS(ON) = 115 mΩ @ VGS = -4.5V RDS(ON) = 155 mΩ @ VGS = -2.5V Fast Switching Speed High Performance Trench Technology for Extremely Low RDS(ON) Super SOT-23 provides Low RDS(ON) and 30% Higher Power Handling Capability than SOT23 in the same Footprint These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant Applications:- Battery management Load switch Battery protection Specifications:- Drain-Source Voltage: -20V Gate-Source Voltage: ±8V Drain Current – Continuous: -1.6A Drain Current – Pulsed: -5A Maximum Power Dissipation: 0.5-0.46W Operating and Storage Junction Temperature Range: -55 to +150°C Package Includes:- 1 x FDN338P MOSFET - (SMD SOT-23 Package) - 20V 1.6A P-Channel MOSFET
