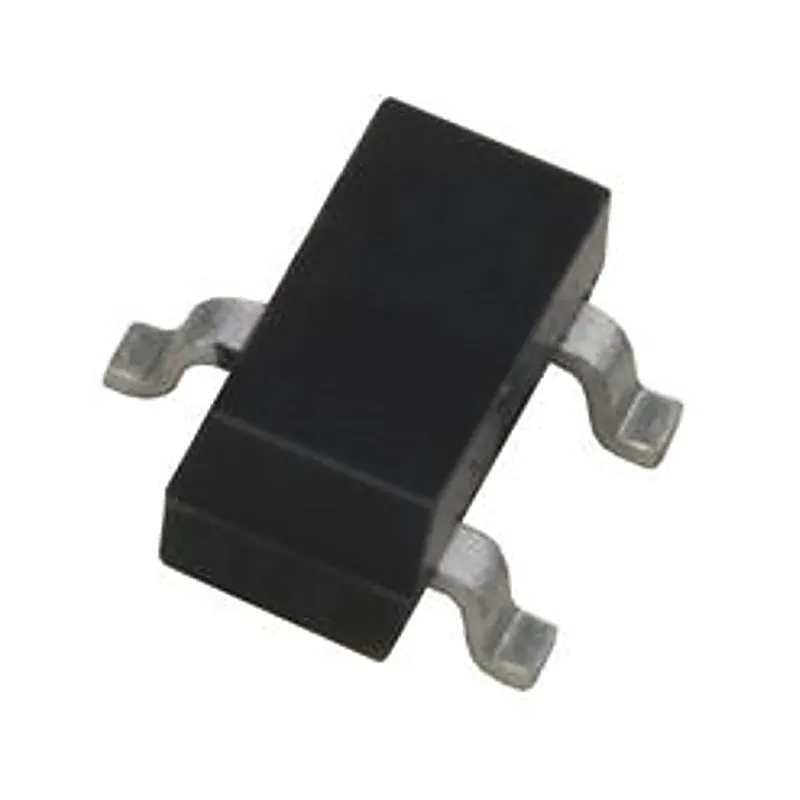

FDN340P MOSFET - (SMD SOT-23 Package) - 20V 2A P-Channel Logic Level MOSFET

This P−Channel Logic Level MOSFET is produced uses advanced low voltage Power Trench process that has been especially tailored to minimize the on−state resistance and yet maintain low gate charge for superior switching performance. These devices are well suited for portable electronics applications: load switching and power management, battery charging circuits, and dc−dc conversion. Features:- -1.6 A, -20 V RDS(ON) = 70 mΩ @ VGS = -4.5V RDS(ON) = 110 mΩ @ VGS = -2.5V Low Gate Charge (7.2nC Typical) High Performance Trench Technology for Extremely Low RDS(ON) High Power Version of Industry Standard SOT−23 Package. Identical Pin−Out to SOT−23 with 30% Higher Power Handling Capability These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant Applications:- Battery management Load switch Battery protection Specifications:- Drain-Source Voltage: -20V Gate-Source Voltage: ±8V Drain Current – Continuous: -2A Drain Current – Pulsed: -10A Maximum Power Dissipation: 0.5-0.46W Operating and Storage Junction Temperature Range: -55 to +150°C Package Includes:- 1 x FDN340P MOSFET - (SMD SOT-23 Package) - 20V 2A P-Channel Logic Level MOSFET
