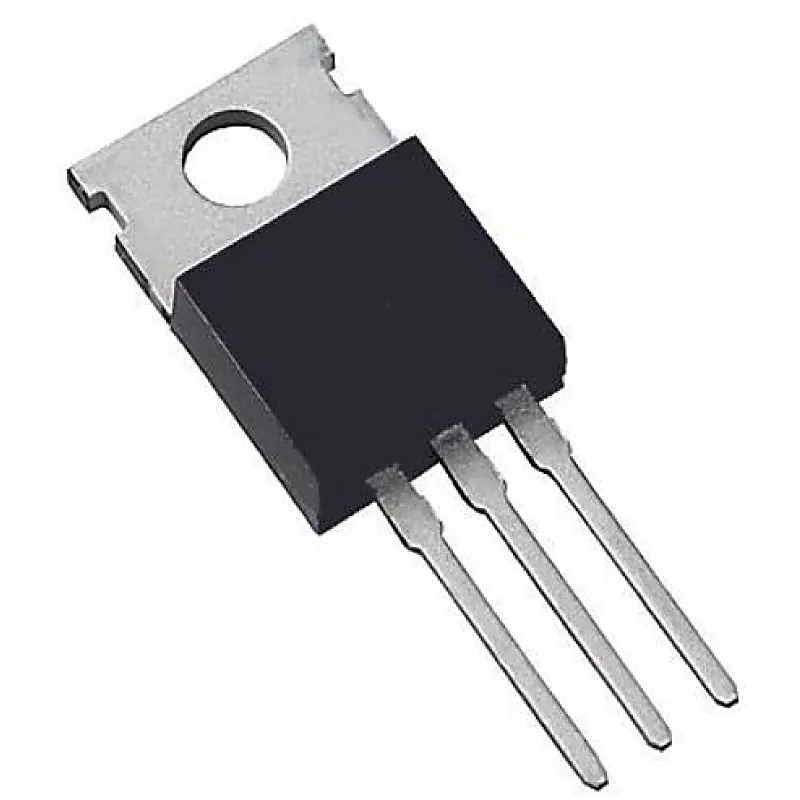

FDP090N10 MOSFET - 100V 75A N-Channel Power Trench MOSFET TO-220 Package

FDP090N10 N-Channel MOSFET is produced using advanced PowerTrench® process that has been tailored to minimize the on-state resistance while maintaining superior switching performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency. Features:- • Low offset voltage • Full-voltage operation • Fast switching speed • Low error voltage • Low gate charge • High power and current handling capability Detailed Specifications:- Number of Channels 1 Channel Transistor Polarity N-Channel Drain-Source Breakdown Voltage (Vds) 100V Continuous Drain Current (Id) 75A Drain-Source Resistance (Rds On) 9mOhms Gate-Source Voltage (Vgs) 20V Gate Charge (Qg) 116 nC Operating Temperature Range -55 - 175°C Power Dissipation (Pd) 208W Related Documents:- FDP090N10 MOSFET Datasheet
