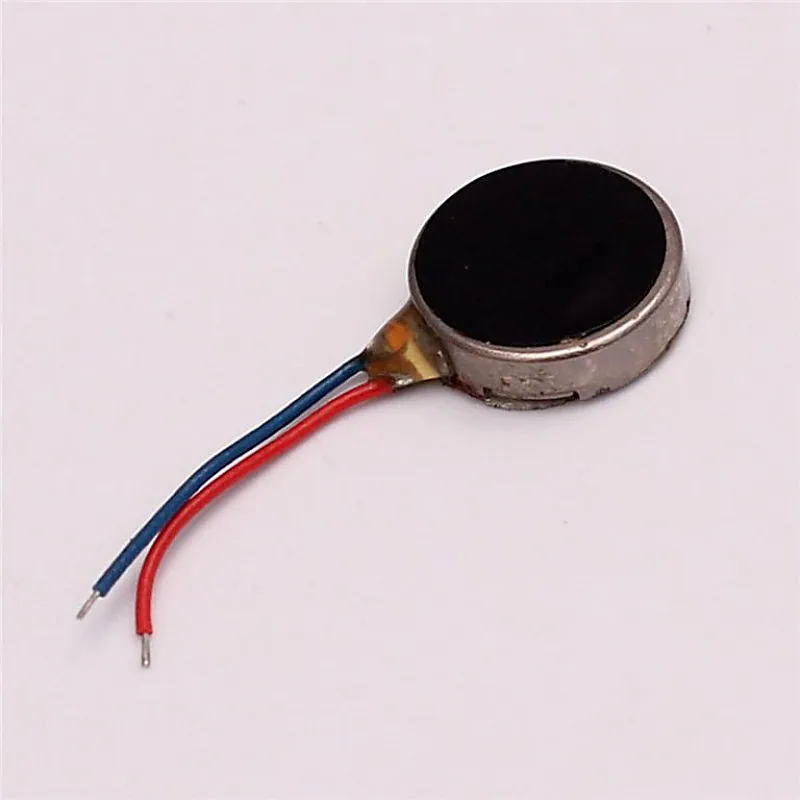

Flat 1034 Mobile Phone Vibrator Motor

This Flat 1034 Mobile Phone Vibrator Motor is a shaftless vibration motor that is fully-enclosed with no exposed moving parts. Its small size (10 mm diameter, 3.4 mm height) and shaftless design mean you can mount it on a PCB or even place it in a pocket to add quiet, haptic feedback to your project. The motor has a 3M adhesive backing on it for easy mounting and 1.5 leads for making quick connections. Polarity is not important; the motor can run CW or CCW. This tiny, button-type, vibrating motor shakes with a vibration amplitude of 0.75g and draws approximately 60mA when 3V is applied to its leads. Specifications:- Type 1034 Rated Voltage(V) 3 Operating Voltage(VDC) 2.5 to 4 Operating Temperature (C) -20 to 60 Min. Rated Speed(RPM) 9000 Max. Rated Current(mA) 90 Max. Starting Current(mA) 120 Cable Length 20 cm Package Includes : 1 x Flat 1034 Mobile Phone Vibrator Motor.
