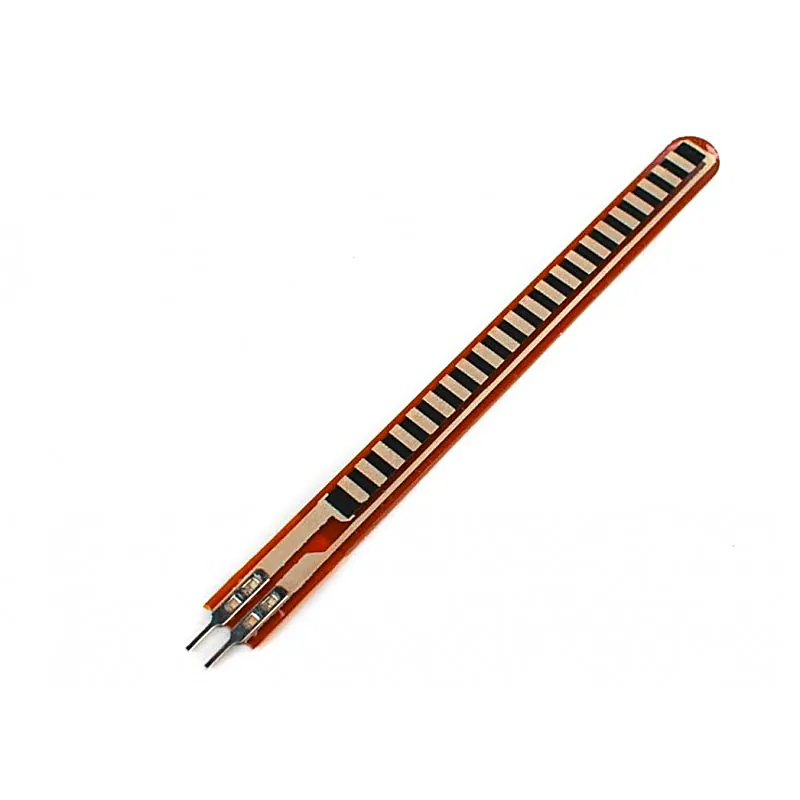

Flex Sensor - 2.2 inch

Flex Sensors are commonly used in Robotic Gloves and other Robotic Control application. It can be used to analyze how much a material is being bent. This flex sensor is 2.2 inch long and has two output leads which acts like a variable resistor. That is the resistance between two pins change based on how much the sensor is bent. It is commonly used along with another resistor to build a voltage divider circuit and then obtain a variable voltage based on the change in resistance of the sensor. Features:- Angle Displacement Measurement Bends and Flexes physically with motion device Simple Construction Applications:- Angle Displacement Measurement Bends and Flexes physically with motion device Possible Uses Robotics Gaming (Virtual Motion) Medical Devices Computer Peripherals Musical Instruments Physical Therapy Simple Construction Low Profile Specifications:- Flat Resistance: 25K Ohms Life Cycle: >1 million Flex Length : 2.2 inch Temperature Range: -35°C to +80°C Resistance Tolerance: ±30% Bend Resistance Range: 45K to 125K Ohms (depending on bend radius) Power Rating : 0.50 Watts continuous, 1 Watt Peak Package Includes:- 1 x Flex Sensor - 2.2 inch
