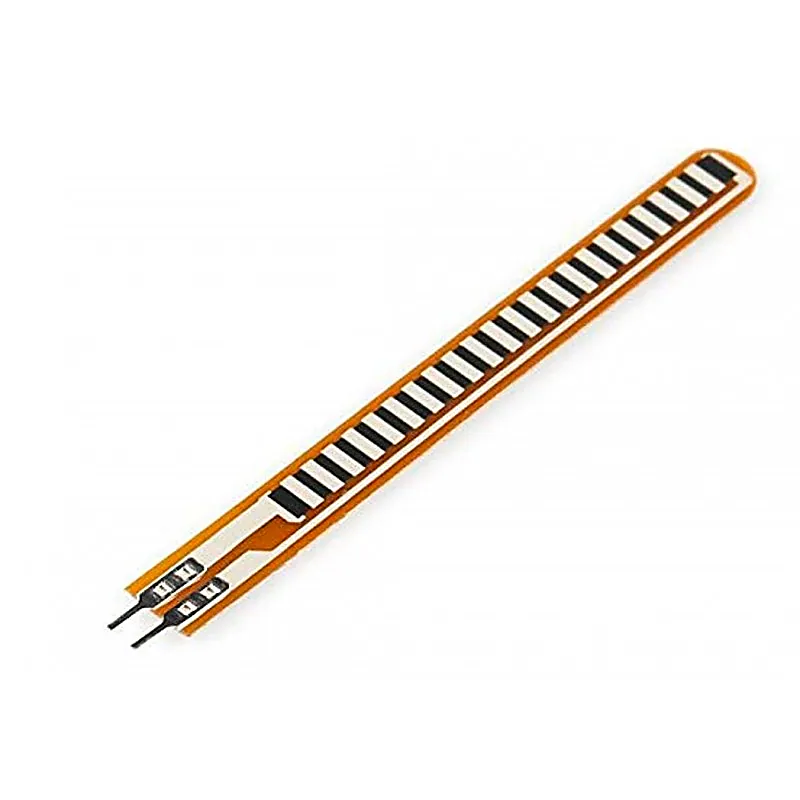

Flex Sensor - 4.5 inch

A Flex Sensor 4.5 inch is a simple resistive sensor which is 4.5 inch in length yet a powerful sensor to sense the flexibility. As the sensor is flexed, the resistance across the sensor increases. The resistance of the flex sensor changes when the metal pads are on the outside of the bend (the text on the inside of bend). The connector is 0.1cinch spaced and bread board friendly. The flex sensor is a bend detecting sensor which has got numerous applications in robotics, medical and haptic technology. The resistance of these sensors changes in accordance with the bend, which can be measured using any microcontroller. Features:- Angle Displacement Measurement Bends and Flexes physically with motion device Simple Construction Applications:- Angle Displacement Measurement Bends and Flexes physically with motion device Possible Uses Robotics Gaming (Virtual Motion) Medical Devices Computer Peripherals Musical Instruments Physical Therapy Simple Construction Low Profile Specifications:- Flat Resistance: 10K Ohms Resistance Tolerance: ±30% Life Cycle: >1 million Flex Length : 4.5 inch Temperature Range: -35°C to +80°C Bend Resistance Range: 60K to 110K Ohms (depending on bend radius) Power Rating : 0.50 Watts continuous, 1 Watt Peak Package Includes:- 1 x Flex Sensor - 4.5 inch
