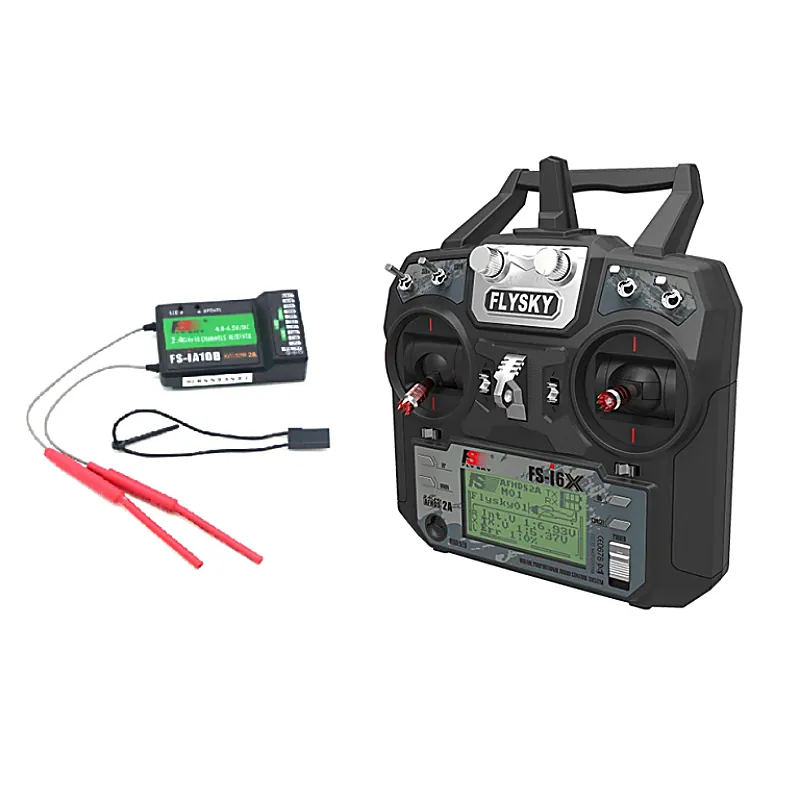

Fly Sky FS-i6X 2.4GHz 6CH AFHDS 2A RC Transmitter With FS-iA10B 2.4GHz 10CH Receiver

The Fly sky FS-i6X 2.4GHz 6CH AFHDS 2A RC Transmitter With FS-iA10B 2.4GHz 10CH Receiver is for those who are interested in Radio controller. The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and presented by FLYSKY is specially developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver sensitivity, FLYSKYs AFHDS technology is considered to be one of the leaders in the RC market today. Features:- Bidirectional Communication : Capable of sending and receiving data, each transmitter is capable of receiving data from temperature, altitude and many other types of sensors, servo calibration, and i-BUS Support. Multi-channel Hopping Frequency : This system bandwidth ranges from 2.408GHz to 2.475GHz. This is divided into 135 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean version) in order to reduce interference from other transmitters. Omni-directional Gain Antenna : The high efficiency Omni-directional high gain antenna cuts down on interference while using less power and maintaining a strong reliable connection. Unique ID Recognition System : Each transmitter and receiver has its own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the operation of the system. Low Power Consumption : The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one-tenth the power of a standard FM system, dramatically extending battery life. Specifications and Features : Specification for FS-i6X RC Transmitter : Item:FS-i6X RC Transmitter Tx Channel: 6 Model Type: Fixed-Wing/Glider/Helicopter RF Range: 2.408-2.475GHz RF Power : < 20dBm RF Channel: 135 Bandwidth : 500KHz 2.4GHz System : AFHDS 2A / AFDHS Modulation Type: GFSK Stick Resolution: 4096 Low Voltage Warning: < 4.2V DSC port: PS/2 Port PPM Chargeable: No Antenna Length: 26mm (Dual Antenna) Weight: 392g Power : 6V DC 1.5A Display: STNTransflective Display, LCD 12864 Lattice, VA 73x39mm, LCD with white backlight Size : 174 x 89 x 190 mm Online Update: Yes Color: Black Certificate: CE0678, FCC Specifications for FS-iA10B RC Receiver: Rx Channels: 10 Suitable models: Airplane / glider / helicopter Health Frequency range :2.4-2 .48 GHz Transmitting power: not more than 20dBm Receiver sensitivity:-105dBm 2.4G modes: automatic frequency second generation digital system Encoding: GFSK Antenna length: 26 mm * 2 (dual antenna) Weight: 19.3 g Input power :4.0-6 .5 V DC Dimensions: 47 x 33.1 x 14.7 mm Color: Black Certification: CE0678, FCC i-BUS Interface: Yes Data acquisition interface: Yes Color: Black. Model Type : Airplane / Glider / Helicopter Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i10, FS-GT2E, FS-GT2G Package Includes : 1 x Fly sky FS-i6X 6CH 2.4GHz AFHDS 2A RC Transmitter. 1 x FS-iA10B 2.4GHz 10CH Receiver with Binding cable. 1 x PS2 to USB Update Cable. 1 x User Manual. Specifications :- Antenna Length (mm) 26 Certificate CE0678, FCC Charging Port No Code Type Digital Color Black Dimensions (mm) LxWxH 174 x 89 x 190 DSC Port PS/2 Port PPM Yes Low Voltage Warning On <4.2V Model Type Digital Radio Transreceiver Modulation Type GFSK No. of Channels Receiver: 10 Transmitter: 6 Operating Voltage (VDC) 6 RF Power < 20dBm Weight (gm) 392 Default Operating Mode Mode 2 (Left-Hand Throttle) Band-Range (GHz) 2.40 ~ 2.48 Bandwidth (KHz) 500
