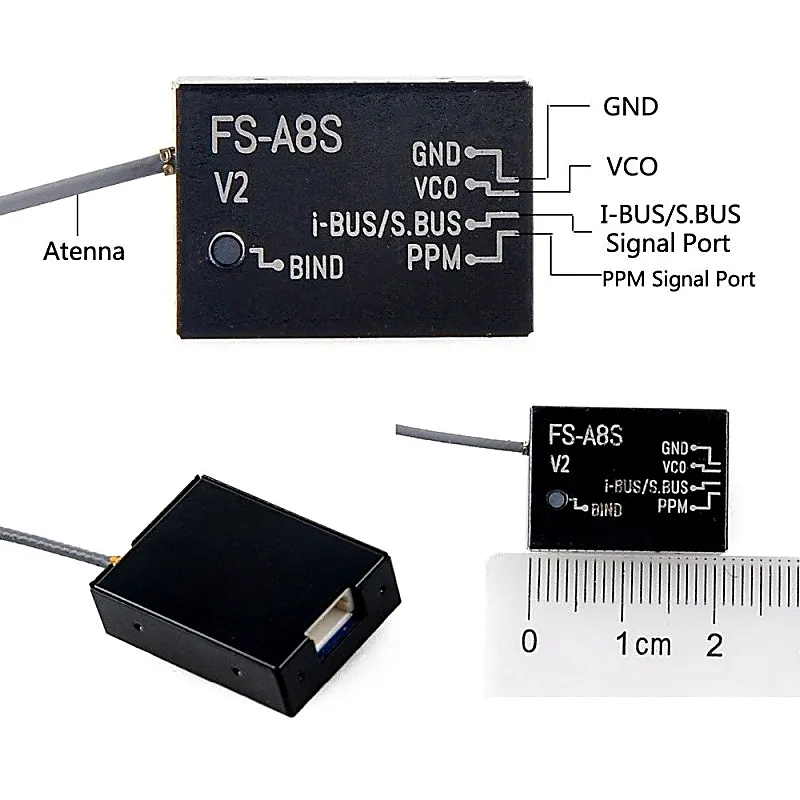

FlySky FS-A8S 2.4G 8CH Mini Receiver Module Rev 2

The FlySky FS-A8S 2.4G 8CH Mini Receiver Rev 2 is built for use in multi-rotor drones and is a 1-way receiver (no telemetry). In the world of racing of drones, the basic requirement is for small and lightweight components that will make a drone more and more nimble. This FS-A8S receiver fits these requirements superbly by being the only 20x14x5.3mm in size and 1.2gm in weight. It uses the extremely stable AFHDS 2A (Automatic Frequency Hopping Digital System) protocol, supports standard PPM output and has i-BUS support for up to 18 channels. Features : AFHDS 2A 2.4GHz system. SC port: PPM/i-BUS/S.BUS. The channel delay is <15mS. Certificate:CE0678. FCCID: N45ZA8S00. Low Voltage Alarm: No. Online update: No. Compatible with: FS i4 i6 i6S i6X TM10 TM8 Transmitter. Package Includes : 1 x FlySky FS-A8S 2.4G 8CH Mini Receiver module Rev 2. 1 x Connecting Cable. Specifications :- Model FS-A8S 2.4G 8CH Mini Rx Operating Voltage (VDC) 4.0 ~ 8.4V Current Consumption (mA) 40 Control Distance 300m No. of Channels 8 (PPM), 18 (i-BUS) No. of Band 135 Modulation Type GFSK RF Range 2.408-2.475 GHz Bandwidth 500KHz Rx Sensitivity (dBm) -92 Signal Output IBUS, PPM i-Bus Interface Yes Antenna Length (mm) 90 Color Black Net weight (gm) 6 Dimensions (mm) LxWxH 20 x 14 x 5.3
