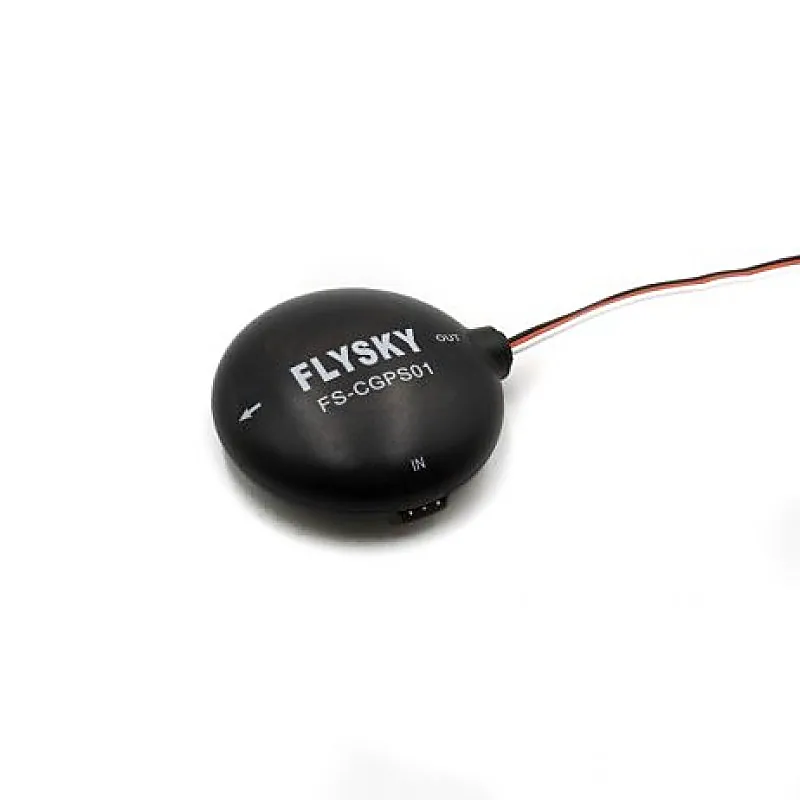

FlySky FS-CGPS01 GPS Module

The FS-CGPS01 adopts the NEO-M8Q chip, supports GPS, Galileo, Beidou, and other satellite systems, and features high sensitivity, short acquisition time, strong anti-interference ability, and low power consumption. The FS-CGPS01 can be used for fixed wings, and traversal machines (5 inches, 7 inches larger models) training to view satellite quantity, ground distance, ground speed, height, direction, longitude, latitude, etc. By viewing the ground distance, the height, and ground speed can provide some reference data for evaluating battery life or training effects, and can provide data on the aircraft in the aircraft by the ground distance and direction. For the vehicle model, the speed can be measured by GPS. Cautions: Ensure that the product and model are installed correctly before use, otherwise, the model may be seriously damaged. Keep the GPS installed horizontally, install it higher than the machine body as far as possible, and keep it away from high current and strong magnetic objects; Avoid overexertion to damage any objects; If the bracket is not installed, please stick the GPS to the model frame using 3M. If you need to install the bracket, please stick the GPS on the bracket using 3M and keep the following installation status. Features: Item Name: FS-CGPS01 GPS Model: FS-CGPS01 Master Chip: NEO-MBQ Channels: 72 Satellite Systems Sup port ed: GPS | Galileo | Beidou Number of Satellites Searched: > 12 Tracking: -167dBm Capture: -160dBm Cold Start: -148dBm Hot Start: -157d Bm Cold Start Time: Average 265 Hot Start Time: Average Is Positioning Accuracy: 0.3 degrees Accuracy of Speed Measurement: 0.05 m/s Time Accuracy: RMS 99% 30ns LED: Yes Frequengy Range: 1559NH 1606 MHZ Update Frequency: 10Hz Data Format: i-BUS Input Power: 4.0 ~ 8.4V Temperature Range: -15C~ +60C Humidity Range: 20%6 ~ 95%6 Dimensions: 52.4 x 50 x 18.5mm Weight: 30g Certification: CE.FCC Package Includes: 1 x FlySky FS-CGPS01 GPS Module Attachments : Download
