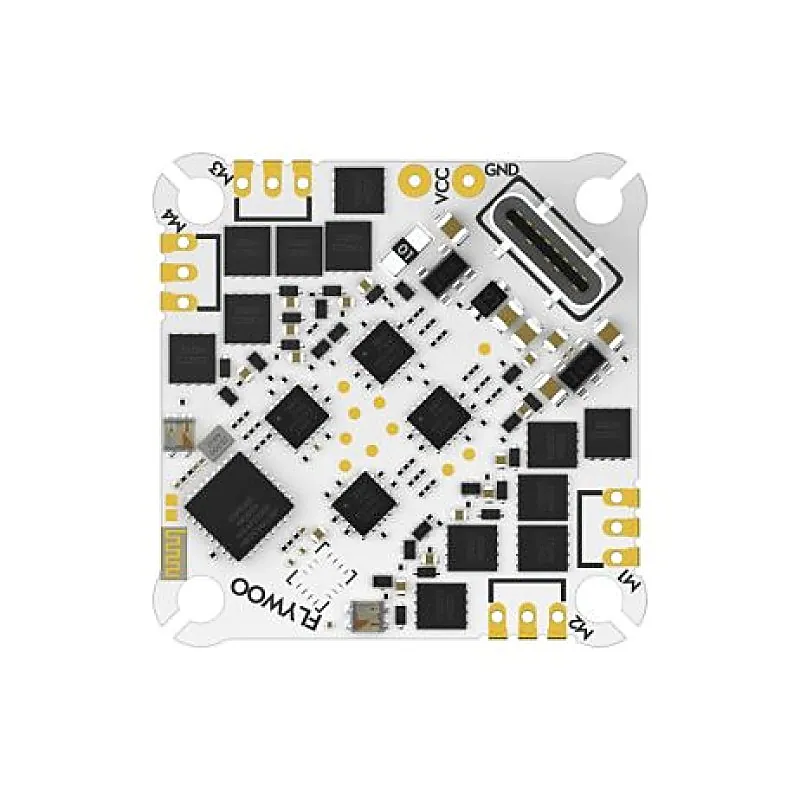

FLYWOO GOKU F405 HD 1-2S 12A AIO ELRS (ICM42688)

The FLYWOO GOKU F405 HD is a state-of-the-art all-in-one (AIO) flight controller designed for 1-2S HD micro drones, tailored to meet the demands of both hobbyists and advanced users. This compact unit integrates essential components for a streamlined setup, enhancing performance and ease of use. Features: Advanced MCU: Powered by STM32F405BGA for high processing speed. Gyro Sensors: Utilizes ICM42688P for superior stability. Integrated ESC: 4-in-1 ESC supports 1S/2S LiPo batteries with up to 12A output. Versatile BEC: 5V and 9V outputs at 2A prevent power drops. Data Recording: 8MB black box for flight data analysis. Multiple UARTs: Up to six UART ports for extensive peripheral connectivity. Plug-and-Play O3 Port: Direct plug design for O3 Air unit simplifies installation. Socket Motor Connections: Quick motor replacements and upgrades. LED Indicators: Two WS2812 LEDs provide flight status feedback. Built-in Barometer: DPS310/SPL06 for accurate altitude measurements. Current Sensor: Monitors power consumption for better battery management. Package Includes: 1x FLYWOO GOKU F405 HD 1-2S 12A AIO ELRS V2 (ICM42688) 1x XT30 Power Cable 1x Flywoo ELRS 2.4g Minimortal PCB T Antenna UFL(only ELRS Version) 1x DJI O3 Connection Cable 1x PH 2.0 Battery Lead 1x capacitor 4x JST Straight Socket 4x M2*10 screw 4x M2 nuts 4x M2 shock-absorbing ball Attachments : Download
