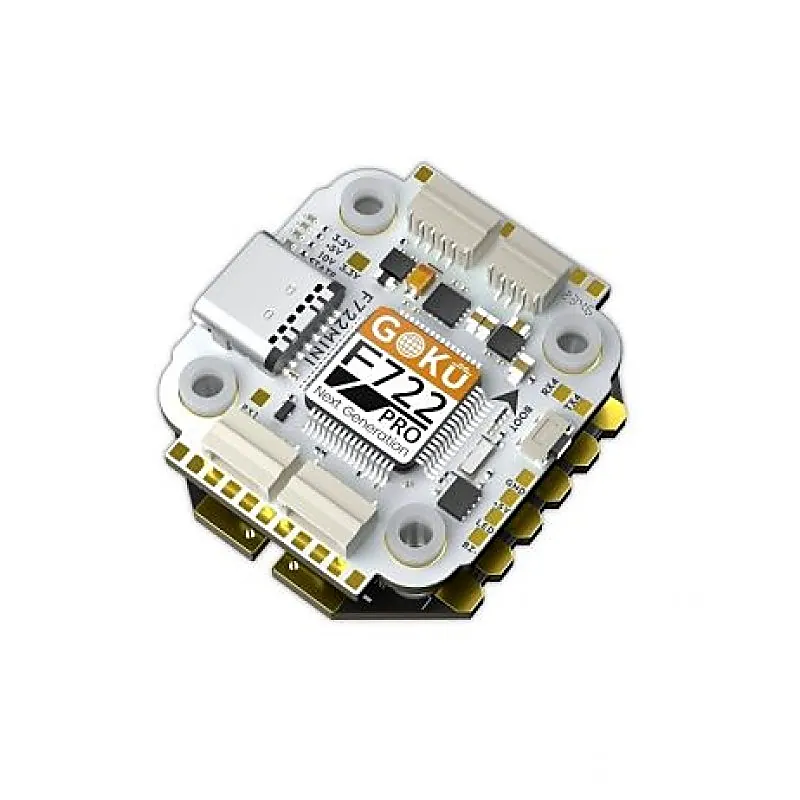

Flywoo GOKU F722 PRO V2 30X30 Flight Controller(MPU6000)

The new generation F722PRO flight controller from FLYWOO not only offers a standard 30.5mm size, high-performance STM32 F722 main control, and MPU6000 gyroscope, but it also supports 8 motor outputs and reserves dual 4-in-1 ESC sockets. It features a user-friendly socket design for all ports, which significantly simplifies the process of connecting devices, thereby enhancing installation efficiency and making maintenance and fault inspection more convenient. This design effectively lowers the threshold for building drones. Features: High-performance processor: Equipped with the STM32F722 high-performance processor with a processing speed of up to 216MHz for faster response. Precision gyroscope: Features the MPU6000 gyroscope for improved control precision and enhanced flight stability. Modular installation: Utilizes snap-lock sockets for plug-and-play functionality without the need for soldering, enabling modular installation, and includes reserved solder pads. Large-capacity black box: Includes a 16MB large-capacity black box to ensure sufficient storage of flight data for later analysis. Stable current output: Onboard 10V/3A and 5V/3A BEC to provide stable current output for VTX and various peripherals. Multiple motor outputs: Supports 8 motor outputs and reserves dual 4-in-1 ESC sockets for simplified connections. Specifications: Product Name: GOKU F722PRO BF Flight Controller Firmware: FLYWOO F722PRO INAV Firmware: FLYWOO F7 MCU: STM32F722 Gyroscope: MPU6000 OSD: AT7456E Barometer: DP310 Black Box: 16MB UARTS: 1/2/3/4/5/6 Input Voltage: 7.4V-26V/2-6S LiPo BEC: 10V3A/5V3A Package Includes: 1 x Flywoo GOKU F722 PRO V2 30X30 Flight Controller(MPU6000)
