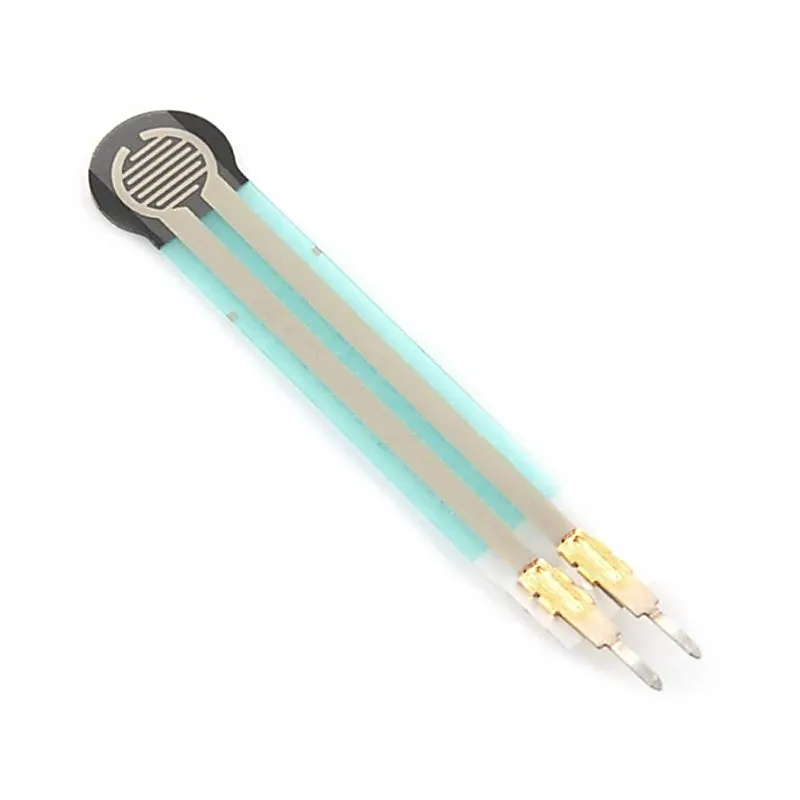

Force Sensor 5.08mm Circle

This is a small force sensitive resistor. It has a 0.16 (4 mm) diameter active sensing area. This FSR will vary its resistance depending on how much pressure is being applied to the sensing area. The harder the force, the lower the resistance. When no pressure is being applied to the FSR, its resistance will be larger than 1M, with full pressure applied the resistance will be 2.5k. Two pins extend from the bottom of the sensor with 0.1 pitch making it bread friendly. These sensors are simple to set up and great for sensing pressure, but they arent incredibly accurate. Use them to sense if its being squeezed, but you may not want to use it as a scale. Applications: Testing and Measurement Equipment Embedded Electronics OEM Development Kit Consumer Electronics Multimeter Features: Easily customizable to a wide range of sizes Cost-effective Ultra-thin; 0.45 mm Robust; up to 10 million actuations Simple and easy to Integrate. PackageIncludes: 1 x Force Sensor 5.08mm Circle Specifications :- Actuation Force 0.1 Newtons Force Sensitivity Range 0.1 10.02 Newtons Non-Actuated Resistance 10M W Device Rise Time <3 microseconds Operating Temperature (C) -30 to 60 Clock Speed 16 MHz Flash Memory 32 KB Overall length 4.5cm(45mm) Overall width 0.7cm(7mm) Sensing area 0.4cm(4mm)
