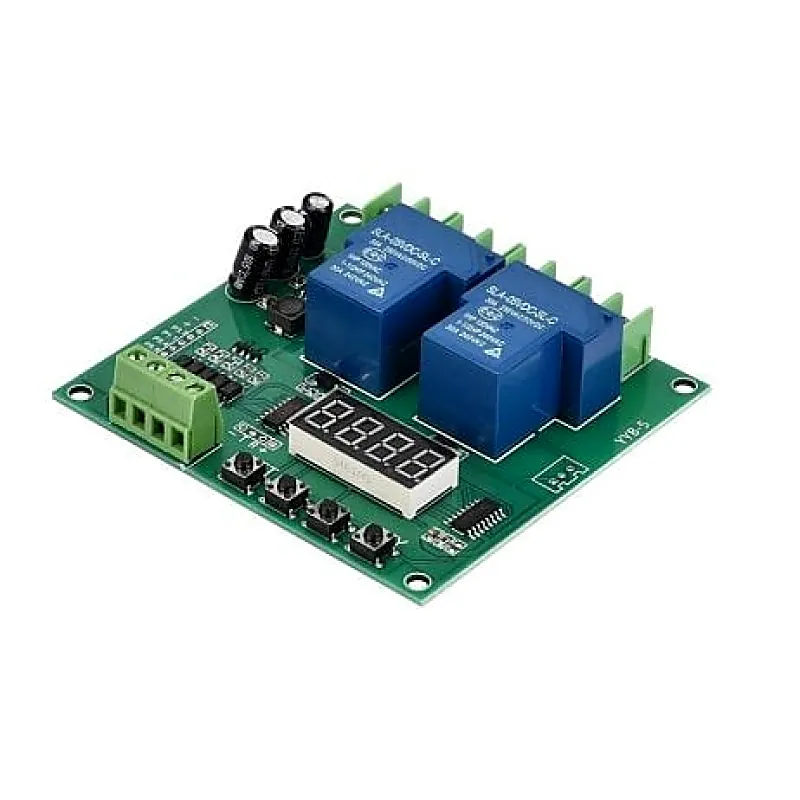

Forward/Reverse Motor Controller Board 12V 24V Motor Two Relay Delay Timing Cycle YYB-5 Module

The Forward/Reverse Motor Controller Board 12V 24V Motor Two Relay Delay Timing Cycle YYB-5 Module is an electronic module designed to control the direction, speed, and timing of a DC motor. Wiring Port Description: 1. AC/DC: Input 7V~27V 3. IN1: input 1 (negative trigger) 4. IN2: input terminal 2 (negative trigger) 2. IN3: input 3 (negative trigger) 5. NO: relay normally open interface, relay pull before the suspension, after the connection with the COM shorted 6. COM: relay common interface 7. NC: relay normally closed interface, the relay before the connection with the COM shorted, pull after the suspension Note: The actual product may vary in slight variation with the image shown depending upon quantity availability. Features: Brand new and high quality 6 kinds of commonly used functions to meet the needs of more applications. It can control 2-way solenoid valve, pumps, motors, lights and other running freely. Output power: it can control within 30A DC or AC load. Time range: 0.1 seconds to 999 minutes any time adjustable The motor control board can control within 30A DC or AC load. Specifications: Operation Mode: Automatic Coil Voltage: 24 Volts Model: YYB-5 Input voltage: DC/ AC7V~27V Time range: 0.1 seconds to 999 minutes Operation Mode Automatic Maximum Switching Current 30 Amps Relay Model: SLA-05VDC-SL-C Product dimension (mm): 93 x 86 x 22 Product Weight (g): 104g Package Includes: 1 x Forward/Reverse Motor Controller Board 12V 24V Motor Two Relay Delay Timing Cycle, YYB-5 Module
