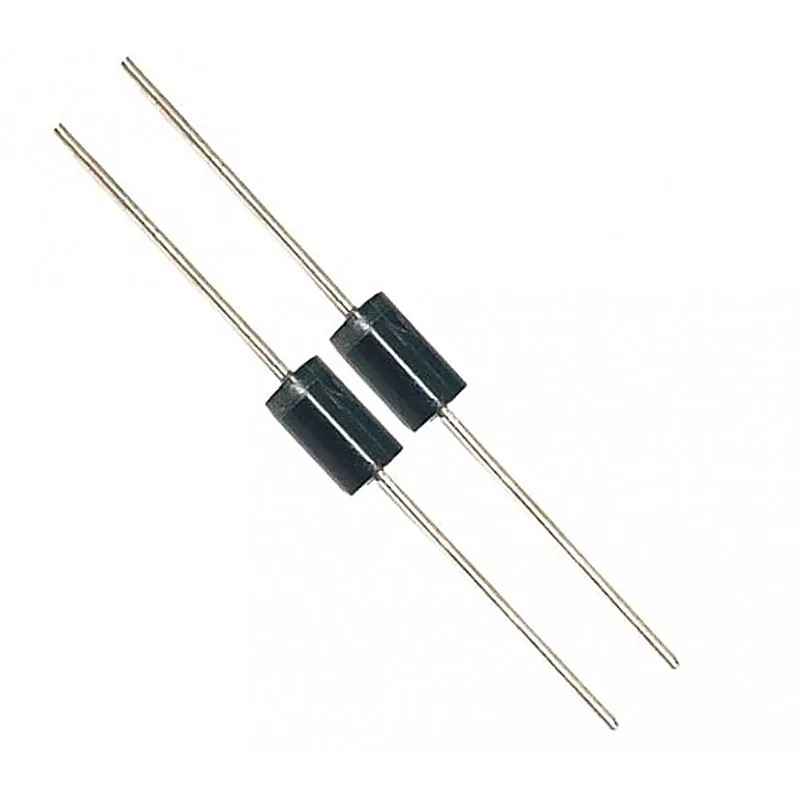

FR107 - Fast Recovery Diode - 2 Pieces pack
FR107 - Fast Recovery Diode - 2 Pieces pack
The FR107 is a 1.0A Fast Recovery Rectifier . The following features are: Plastic Package: UL Flammability Classification Rating 94V-0 Capable of Meeting the Environmental Tests in MIL-STD-750C High Reliability and Low Leakage Fast Switching for High Efficiency Mechanical Characteristics:- • Case: D
+ 18% GST (added at checkout)
In stock — 623 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The FR107 is a 1.0A Fast Recovery Rectifier . The following features are: Plastic Package: UL Flammability Classification Rating 94V-0 Capable of Meeting the Environmental Tests in MIL-STD-750C High Reliability and Low Leakage Fast Switching for High Efficiency Mechanical Characteristics:- • Case: DO-41, Molded Plastic • Terminals: Axial Lead, Solderable per MIL-STD-202, Method 208 • Mounting Position: Any • Polarity: Cathode Band • Weight: 0.35 grams (approx.) Specification:- Symbol Parameter Value Units VRRM Peak Repetitive Reverse Voltage 1000 V VRMS Maximum RMS Voltage 700 V VDC Maximum DC Blocking Voltage 1000 V IF(AV) Maximum Average Forward Rectified Current 1 A IFSM Non-Repetitive Peak Forward Surge Current 30 A TJ Operating Junction Temperature Range − 65 to +175 °C Tstg Storage Temperature Range − 65 to +175 °C Related Document:- FR107 Diode Data Sheet
