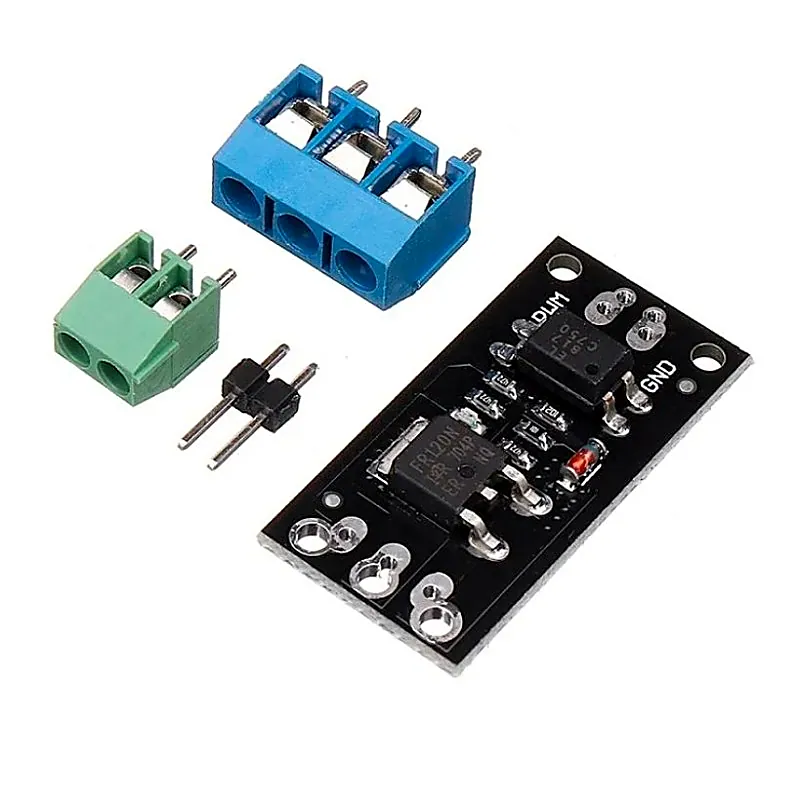

FR120N Mosfet control Module Replacement Relay
FR120N Mosfet control Module Replacement Relay
With optocoupler isolation, the control signal and the power of the controlled device are isolated, which greatly increases the rigidity of the interference. PWM speed regulation widely used to control the start and stop of the motor. The signal input side can be welded to the terminal or pin itself
+ 18% GST (added at checkout)
In stock — 22 units ready
- Compatible with MCU and control board, 3V or 5V signal.
- High-level start, low-level stop, PWM speed regulation.
- Widely used to control the start and stop of the motor, solenoid valve, and other tributary equipment.
- The signal input side can be welded to the terminal or pin itself, compatible breadboard.
- Output can be soldered to the terminal or direct wire.
- Model: FR120N
- MOS tube: 100V 9.4A
- Dimensions: 23mm X 16mm
- Mounting Holes Diameter: 2mm
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
With optocoupler isolation, the control signal and the power of the controlled device are isolated, which greatly increases the rigidity of the interference. PWM speed regulation widely used to control the start and stop of the motor. The signal input side can be welded to the terminal or pin itself, compatible breadboard output can be soldered to the terminal or direct wire. Features: Compatible with MCU and control board, 3V or 5V signal. High-level start, low-level stop, PWM speed regulation. Widely used to control the start and stop of the motor, solenoid valve, and other tributary equipment. The signal input side can be welded to the terminal or pin itself, compatible breadboard. Output can be soldered to the terminal or direct wire. Specifications: Model: FR120N MOS tube: 100V 9.4A Dimensions: 23mm X 16mm Mounting Holes Diameter: 2mm Package Includes: 1 x FR120N Mosfet Control Module Replacement Relay
