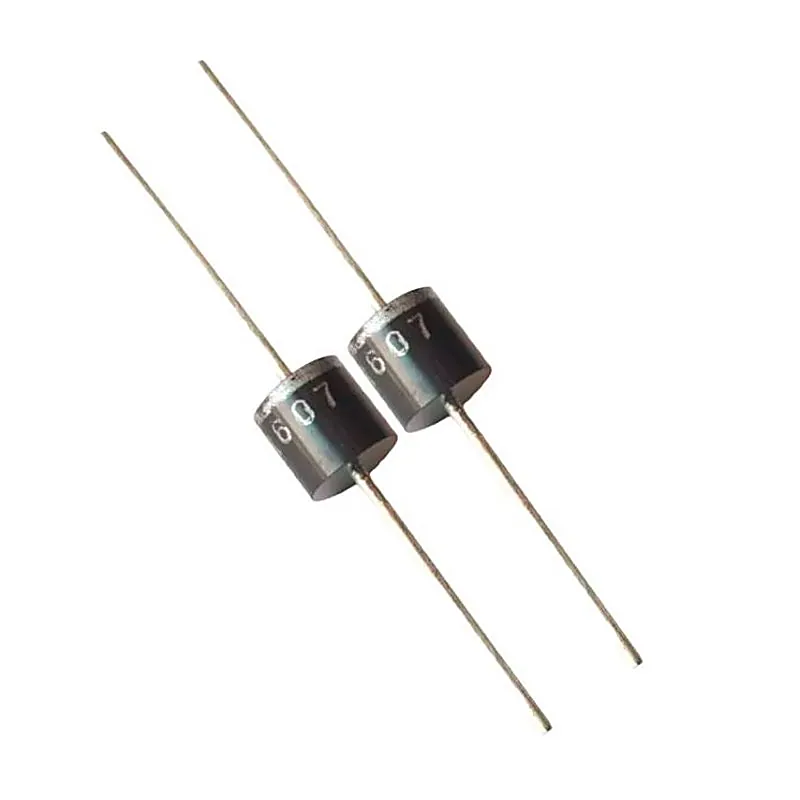

FR607 6A Fast Recovery Diode - 2 Pieces Pack
FR607 6A Fast Recovery Diode - 2 Pieces Pack
The FR107 is a 1.0A Fast Recovery Rectifier . The following features are: Diffused Junction Low Forward Voltage Drop High Current Capability High Reliability High Surge Current Capability Mechanical Characteristics:- • Case: R-6, Molded Plastic • Terminals: Plated Leads MIL-STD-202, Method 200 • Pol
+ 18% GST (added at checkout)
In stock — 584 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The FR107 is a 1.0A Fast Recovery Rectifier . The following features are: Diffused Junction Low Forward Voltage Drop High Current Capability High Reliability High Surge Current Capability Mechanical Characteristics:- • Case: R-6, Molded Plastic • Terminals: Plated Leads MIL-STD-202, Method 200 • Polarity: Cathode Band Weight: 2.1 grams (approx.) • Mounting Position: Any • Marking: Type Number • Lead Free: For RoHS / Lead Free Version Specification:- Symbol Parameter Value Units VRRM Peak Repetitive Reverse Voltage 1000 V VRWM Working Peak Reverse Voltage 1000 V VR DC Blocking Voltage 1000 V VR(RMS) RMS Reverse Voltage 700 V VFM Forward Voltage 1.2 V IO Average Rectified Output Current 6 A IFSM Non-Repetitive Peak Forward Surge Current 200 A TJ Operating Junction Temperature Range − 65 to +125 °C Tstg Storage Temperature Range − 65 to +150 °C Related Document:- FR607 Diode Data Sheet
