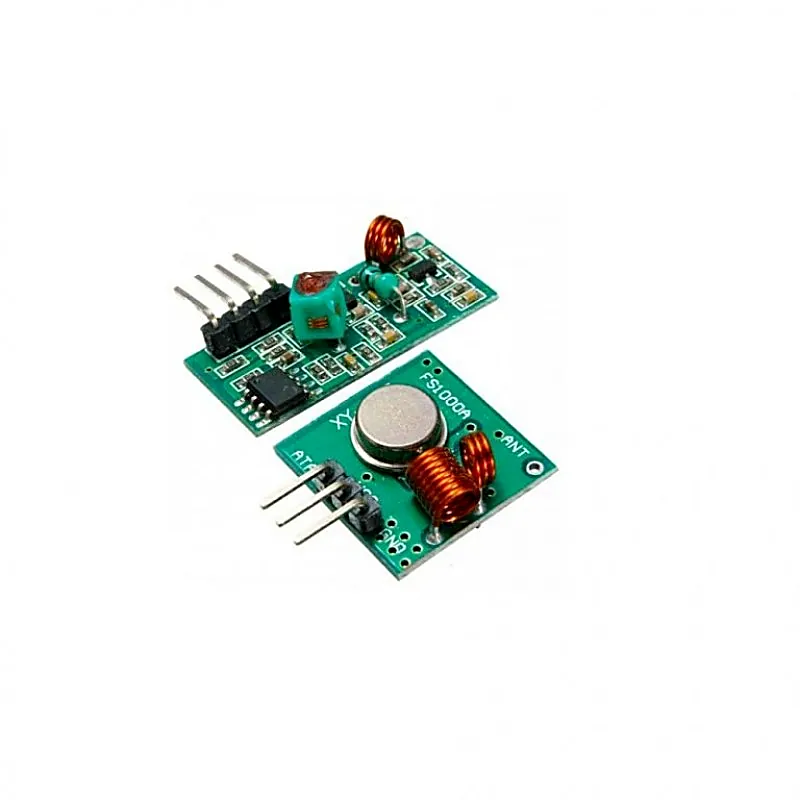

FS1000A 433mHz Transmitter Receiver RF Radio Module

This is FS1000A 433mHz Transmitter Receiver RF Radio Module. This RF module comprises an RF Transmitter and an RF Receiver. The transmitter/receiver (Tx/Rx) pair operates at a frequency of 433 MHz. An RF transmitter receives serial data and transmits it wirelessly through RF through its antenna connected at pin4. The transmission occurs at the rate of 1Kbps 10Kbps. The transmitted data is received by an RF receiver operating at the same frequency as that of the transmitter. This low-cost RF transmitter can be used to transmit signals up to 100 meters (the antenna design, working environment, and supply voltage will seriously impact the effective distance). Its good for a short distance, battery power device development. 433 MHz is the operating frequency for transmitter and receiver pair. Features : Wide input supply (2.5 V to 12V) Easy to integrate (V+, GND, and Data) The device in deep sleep mode when Data pin is grounded Very small dimension. Receiver Module specification Operation voltage: DC5V Static Current: 4MA Receiver frequency:433.92MHZ; 315 Mhz Sensitivity105DB Dimension30*14*9mm External Antenna 32CM signal wire spiral Transmitter Module Specification Operating voltage: 3-12V Operating frequency: 433.92MHz; 315Mhz Standby current: 0mA Operating current :20-28mA Transmission distance:> 500m (open to receiving plate sensitivity at-103dBm distance of more than) Output Power: 16dBm (40mW) Transfer rate: <10Kbps Modulation mode: OOK (Amplitude Modulation) Operating Temperature: -10 ~ +70 Size: 19 19 8mm Package Includes : 1 xFS1000A 433mHz Transmitter. 1 xFS1000A 433mHz Receiver. Specifications :- Transmitter specification:- Operating voltage 3-12V Operating frequency 433.92MHz; 315Mhz Operating current 20 28 mA Transmission distance > 500 m Output Power 16dBm (40mW) Transfer rate <10Kbps Dimensions (mm) 19 x 19 x 8 (L x W x H) Receiver specification:- Operation voltage DC 5V Receiver frequency 433.92MHZ; 315 Mhz Sensitivity 105DB External Antenna 32CM signal wirespiral Dimensions(mm) 30 x 14 x 9 (L x W x H)
