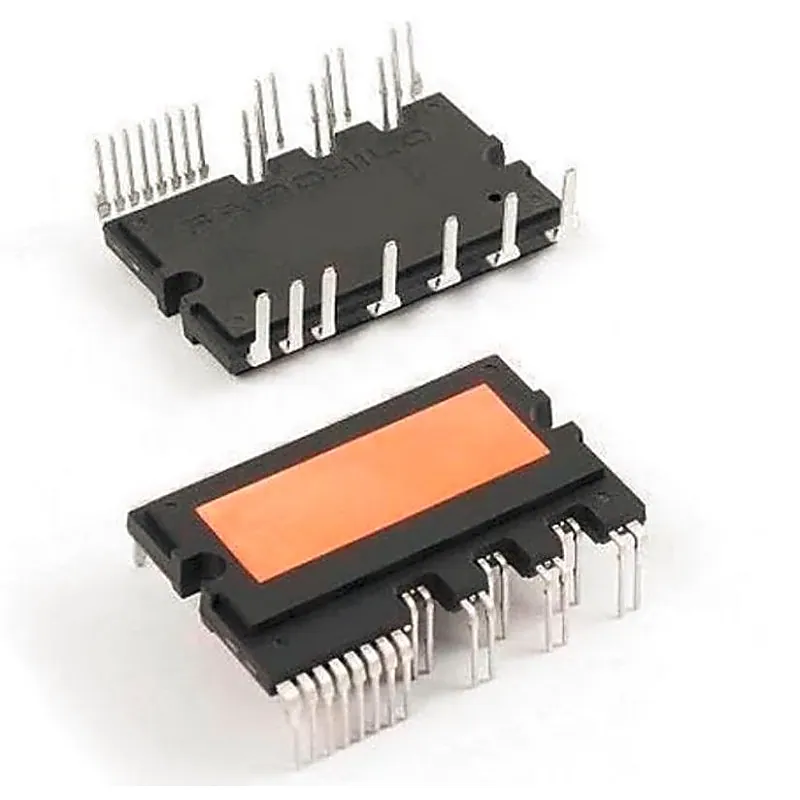

FSBB20CH60 IGBT Module - 600V 20A Power Conversion IGBT Module

FSBB20CH60 is a Motion SPM ® 3 series that ON Semiconductor has developed to provide a very compact and high performance inverter solution for AC motor drives in low-power applications such as air conditioners. It combines optimized circuit protections and drives matched to low-loss IGBTs. The system reliability is further enhanced by the integrated under-voltage lock-out and over-current protection. The high speed built-in HVIC provides optocoupler- less single-supply IGBT gate driving capability that further reduces the overall size of the inverter system. Each phase leg current of the inverter can be monitored thanks to three separate negative dc terminals. Features:- • UL Certified No.E209204(SPM27-CA package) • Very low thermal resistance by using DBC • 600V-20A 3-phase IGBT inverter bridge including control ICs for gate driving and protection • Three separate negative DC-link terminals for inverter current sensing applications • Single-grounded power supply for built-in HVICs • Isolation rating of 2500Vrms/min. Specification:- Symbol Description Ratings Units VPN Supply Voltage 450 V VPN(Surge) Supply Voltage (Surge) 500 V VCES Collector- Emitter Voltage 600 V ±IC Each IGBT Collector Current 20 A ±ICP Each IGBT Collector Current (Peak) 40 A PC Collector Dissipation 61 W Related Document:- FSBB20CH60 IGBT Data Sheet
