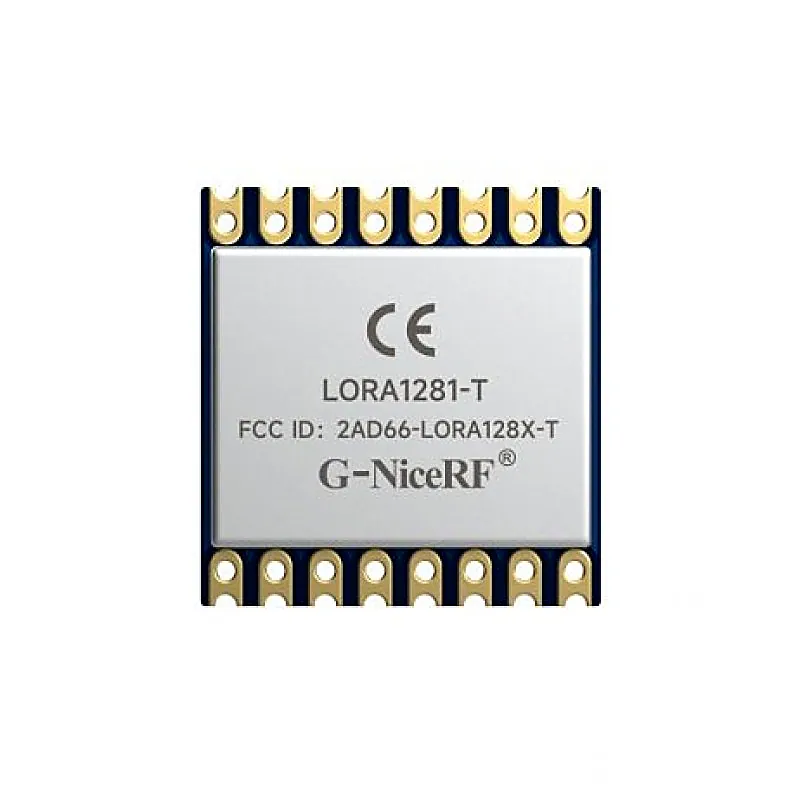

G-NiceRF LoRa128X-T : SX1280/SX1281 2.4GHz FCC ID & CE-RED Certified TCXO Ranging Module

The G-NiceRF LoRa128X-T : SX1280/SX1281 module is a high-performance 2.4 GHz transmitter and receiver designed for long-range, low-power communication. Powered by Semtechs SX1280/SX1281 RF chip, it utilizes LoRa modulation for improved range and better sensitivity than typical 2.4 GHz modules. The G-NiceRF LoRa128X-T : SX1280/SX1281 module supports a 0.5ppm TCXO (temperature-compensated crystal oscillator) for precise frequency stability, even in extreme temperature conditions, making it suitable for harsh environments. Features: Operating Frequency Range: 2400-2500 MHz Dual Certification: CE & FCC Operating Temperature Range: -40C to +85C Data Transfer Rate: 0.476 202 Kbps (LoRa) Maximum Output Power: 12.5 dBm Sensitivity: -132 dBm @ LoRa Modulation: LoRa, FLRC, FSK FIFO: 256 bytes Crystal Oscillator: 0.5 ppm TCXO / 10 ppm Operating Voltage Range: 1.8V 3.7V Applications: Wireless remote, smart home, toy control, health monitoring, tire pressure monitoring Package Includes: 1 x G-NiceRF LoRa128X-T : SX1280/SX1281 2.4GHz FCC ID & CE-RED Certified TCXO Ranging Module
