GEPRC -CL30 Frame

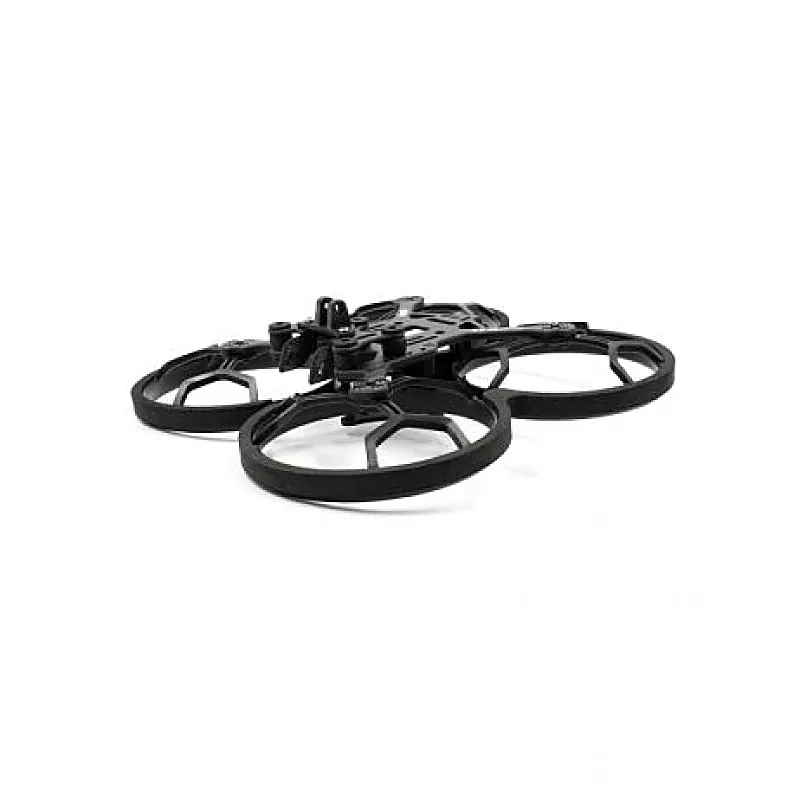

The GEPRC CL30 is a compact and ultra-lightweight 3-inch drone frame optimized for stability, performance, and camera compatibility. It builds on the CL25 design with enhanced damping for smoother footage and strong power output for 14041408 motors. Supporting Naked GP8 and Insta360 Go2, this frame offers versatile mounting and solid protection with prop guards. Ideal for freestyle and cinematic flying, the CL30 delivers extended functionality in a refined, robust structure. Features: Compact 126mm motor-to-motor structure. Compatible with mainstream 26.526.5mm FC and 20x20mm VTX mounts. Enhanced shock absorption for camera stability. Supports 9x9mm motor holes for 14041408 motors. Built-in mounts for Naked GP8 and Insta360 Go2. Lightweight construction with integrated propeller guards. Pre-cut 3D prints for antenna, camera, and receiver. Full hardware kit included for easy assembly. Package Includes: Carbon Plate: 1 x Top Plate (2.0mm) 1 x Arm Plate (3.0mm) 1 x Bottom Plate (2.0mm) Screws & Fasteners: 2 x Knurled nut M2 4 x Aluminum Column M2x3.525 2 x M2x4mm Cup Head Screws 28 x M2x6.5mm Round Head Screws 10 x M2x8mm Round Head Screws 7 x M2x9mm Round Head Screws 4 x M2x10mm Round Head Screws 1 x M2x12mm Cup Head Screw 4 x M2x16mm Cup Head Screws 1 x M2 Rivet Nut 4 x M2 Lock Nuts 8 x M2 Iron Nuts 8 x M2x6.5mm Damping Rings 9 x Damping Platform Rings 3D Printings: 1 x 19x19mm Camera Mount 1 x VTX Antenna Mount 1 x TBS T-shaped Antenna Mount 1 x TBS NanoRX Mount 1 x Camera Protector Injection Parts: 6 x 3-inch Propeller Guards 1 x GP Camera Mount Other Accessories: 4 x EVA Damping Ring of Guards 2 x 3M Double-Sided Tapes 2 x Silicone Pads 2 x Landing Pads 1 x Battery Strap M15x200mm 1 x Battery Strap M15x150mm 1 x L-shaped Tool (1.5mm) 1 x Antenna Tubes
