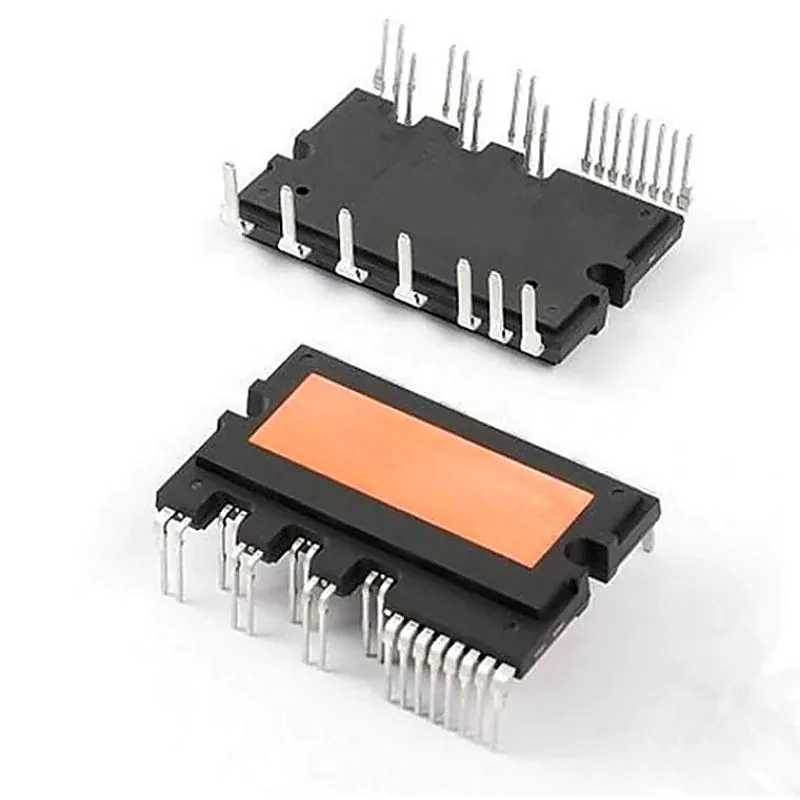

STGIPS20K60 - GIPS20K60 IGBT Module - 600V 17A Intelligent IGBT Power Module

The STGIPS20K60 is an intelligent power module provides a compact, high performance AC motor drive in a simple, rugged design. Combining ST proprietary control ICs with the most advanced short-circuitrugged IGBT system technology, this device is ideal for 3-phase inverters in applications such as home appliances and air conditioners. SLLIMM™ is a trademark of STMicroelectronics. Features:- • IPM 18 A, 600 V 3-phase IGBT inverter bridge including control ICs for gate driving and freewheeling diodes • Short-circuit rugged IGBTs • VCE(sat) negative temperature coefficient • 3.3 V, 5 V, 15 V CMOS/TTL input comparators with hysteresis and pull-down / pull-up resistors • Under voltage lockout • Internal bootstrap diode • Interlocking function • Smart shutdown function • Comparator for fault protection against over temperature and overcurrent • DBC leading to low thermal resistance • Isolation rating of 2500 Vrms/min • UL Recognized: UL1557 file E81734 Applications:- • 3-phase inverters for motor drives • Home appliances, such as washing machines, refrigerators, air conditioners and sewing machine Specification:- Symbol Parameter Values Units VPN Supply voltage applied between P - NU, NV, NW 450 V VPN(surge) Supply voltage (surge) applied between P - NU, NV, NW 500 V VCES Each IGBT collector emitter voltage (VIN (1) = 0 V) 600 V ± IC Each IGBT continuous collector current at TC = 25 °C 18 A ± ICP Each IGBT pulsed collector current 40 A PTOT Each IGBT total dissipation at TC = 25 °C 52 W tscw Short circuit withstand time, VCE = 0.5 V(BR)CES TJ = 125 °C, 5 µs VCC = Vboot= 15 V, VIN (1)= 0 to 5 V Related Document:- STGIPS20K60 IGBT Data Sheet
