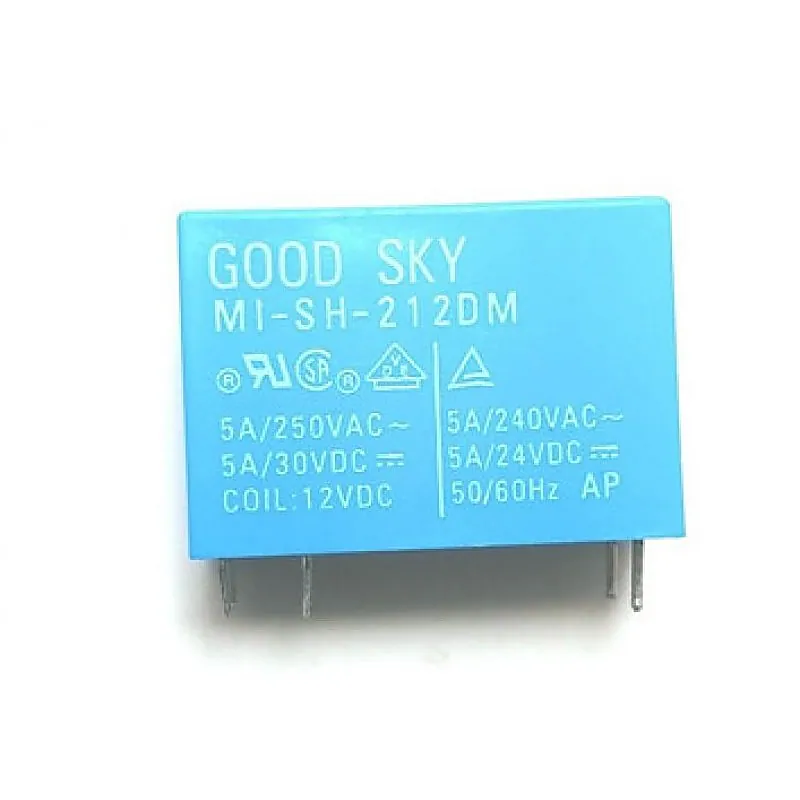

Goodsky 12V 5A DC MI-SH-212DM 6-Pin DPST PCB Mount Power Relay
Goodsky 12V 5A DC MI-SH-212DM 6-Pin DPST PCB Mount Power Relay
Goodsky 12V 5A DC MI-SH-212DM 6-Pin DPST PCB Mount Power Relay Features: Slim type with 10A rated load. 8 mm insulation distance Dielectric strength 5,000V and surge strength up to 10,000V UL Class F insulation available. High sensitivity DC coil type of low power consumption available. Comply with
+ 18% GST (added at checkout)
In stock — 23 units ready
- Slim type with 10A rated load.
- 8 mm insulation distance
- Dielectric strength 5,000V and surge strength up to 10,000V
- UL Class F insulation available.
- High sensitivity DC coil type of low power consumption available.
- Comply with RoHS and REACH regulations
- Cooking Appliances, Air Conditioner, Audio Equipment,
- Domestic Appliances, Controlling Equivalent, etc.
- Type : MI-SH-212DM
- Switching Current (A,Res.load) : 5A
- Contact arrangement : 2 Form A
- Contact material : Ag Alloy
- Coil voltage : 12
- Coil voltage form : DC
- Rated voltage(V) : 250VAC
- Humidity Range : 45-85% RH
- Power Consumption (W) : about 0.72
- Temperature Range : 30 +70°C
- Weight : 13.8gm
- Contact Form : DPST
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
Goodsky 12V 5A DC MI-SH-212DM 6-Pin DPST PCB Mount Power Relay Features: Slim type with 10A rated load. 8 mm insulation distance Dielectric strength 5,000V and surge strength up to 10,000V UL Class F insulation available. High sensitivity DC coil type of low power consumption available. Comply with RoHS and REACH regulations Applications: Cooking Appliances, Air Conditioner, Audio Equipment, Domestic Appliances, Controlling Equivalent, etc. Specifications: Type : MI-SH-212DM Switching Current (A,Res.load) : 5A Contact arrangement : 2 Form A Contact material : Ag Alloy Coil voltage : 12 Coil voltage form : DC Rated voltage(V) : 250VAC Humidity Range : 45-85% RH Power Consumption (W) : about 0.72 Temperature Range : 30 +70°C Weight : 13.8gm Contact Form : DPST Package Includes: 1 x Goodsky 12V 5A DC MI-SH-212DM 6-Pin DPST PCB Mount Power Relay
