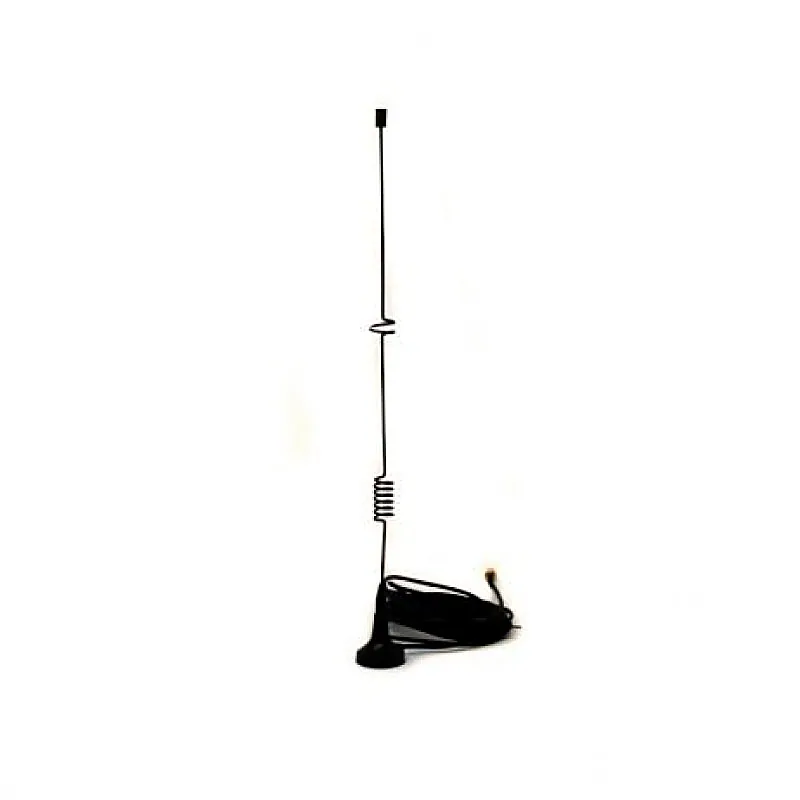

GSM 4G/3G/2G 6/7 dBi Dual Band LTE Flexible Magnetic Mount Antenna

This is GSM 4G/3G/2G LTE Flexible Magnetic Mount Antenna having Frequency of 698 960 MHz & 1710 2690 MHz and 6/ 7 dBi Gain. This antenna is supported to GSM FCT of Micromax, and other GSM Module/Modems. Magnetic mount antennas are commonly used for car and truck applications. The antennas magnetic base sticks securely to the metal of the vehicle. The metal surface of the car acts as a ground plane to bounce the signal. Since magnetic mount antennas require a ground plane, they should be mounted on metal. Application: GPRS, GSM, 3G,4G, ISM Features: Magnetic base indoor antenna. High quality low cost. 20 x 2 mm Neodymium powerful magnets. Chrome-plated available for 1K+ order quantity. Package Includes: 1 x GSM 4G/3G/2G LTE Flexible Magnetic Mount Antenna Specifications :- Frequency (MHz) 698 960 MHz & 1710 2690 MHz Gain 6/ 7 dBi (with 1m cable) Impedance () 50 VSWR < 2.5 Polarization Linear Power Handling (W) 50 HPBW H: 3600 ; V: 300 / 400 Connector SMA-PLUG or as required Operational Temperature -30 to 60 C Humidity 5 75% Housing Spring Steel Powder Coated Dimension (mm) 310 x 27 Weight 75 g (depends on cable length)
