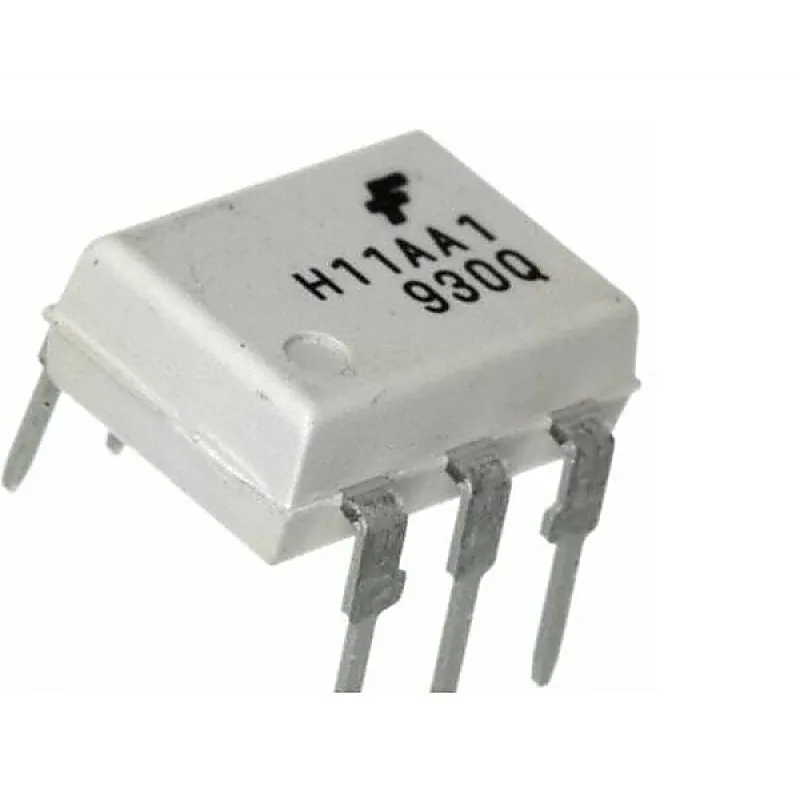

H11AA1 Transistor Output Optocoupler IC DIP-6 Package

The H11AA1 is a bi-directional input optically coupled isolator consisting of two inverse parallel gallium arsenide infrared LEDs coupled to a silicon NPN photo transistor in a 6 pin DIP package. The H11AA1 has a minimum CTR of 20 %, a CTR symmetry of 1:3 and is designed for applications requiring detection or monitoring of AC signals. Features:- • AC or polarity insensitive input • Built-in reverse polarity input protection • I/O compatible with integrated circuits • Industry standard DIP package • Isolation test voltage: 5300 VRMS • Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC Applications:- • Telephone line detection • AC line motor • PLC • Instrumentation Specification:- Symbol Parameter Value Unit IF Forward current ± 60 mA PV Power dissipation 100 mW VCEO Collector-emitter breakdown voltage 30 V VEBO Emitter-base breakdown voltage 5 V IC Collector current 100 mA TJ Junction temperature 100 °C Tstg Storage temperature range - 55 to + 150 °C Related Document:- H11AA1 IC Data Sheet
