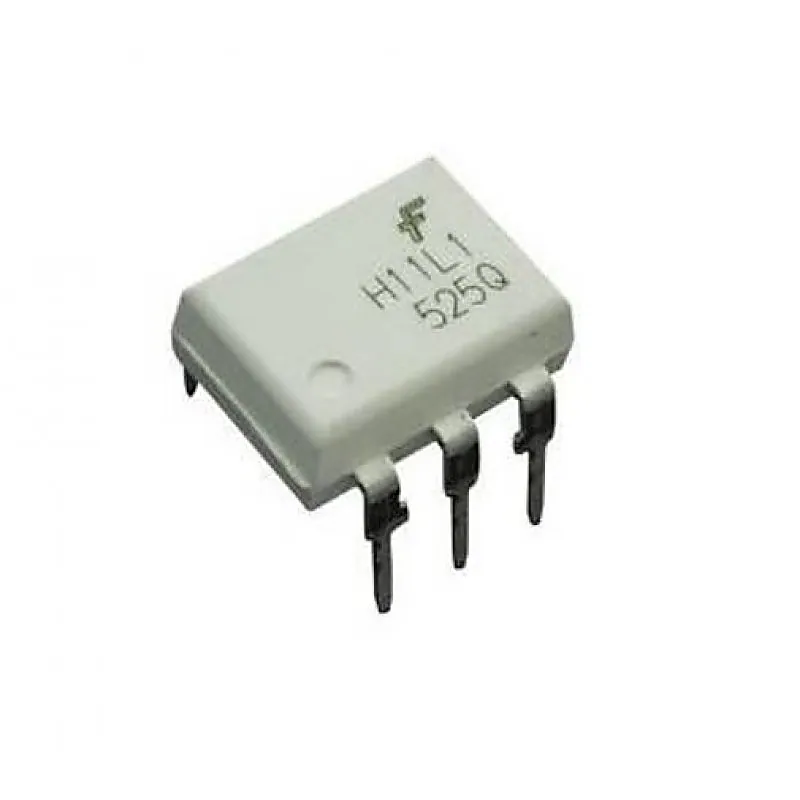

H11L1 Schmitt Trigger Output Optocoupler IC DIP-6 Package

The H11L1 consist of a Schmitt Trigger optically coupled to a gallium arsenide Infrared-emitting diode in a 6-lead DIP package with different lead forming options. Features:- • High isolation 5000 VRMS • DC input with Schmitt Trigger output • 1MHz(NRZ) data rate • RoHS compliance • REACH compliance • Temperature range - 55 °C to 100 °C • Regulatory Approvals - UL - UL1577 (E364000) - VDE - EN60747-5-5(VDE0884-5) - CQC – GB4943.1, GB8898 - IEC60065, IEC60950 Applications:- • Line Receiver • Logic to Logic Isolator • Microprocessor system interface • AC to TTL conversion Specification:- Symbol Parameter Value Unit VISO Isolation voltage 5000 V TOPR Operating temperature -55 ~ +100 °C IF Forward current 60 mA PD Power dissipation 100 mW F(TRANS) Peak transient current (≤1μs P.W,300pps) 1 A VR Reverse Voltage 6 V Vo Output Voltage 0 to 16 V TSTG Storage temperature range - 55 to + 150 °C TSOL Lead Solder Temperature 260 for 10 sec °C Vcc Supply Voltage 3 to 16 V Io Output Current 50 mA Related Document:- H11L1 IC Data Sheet
