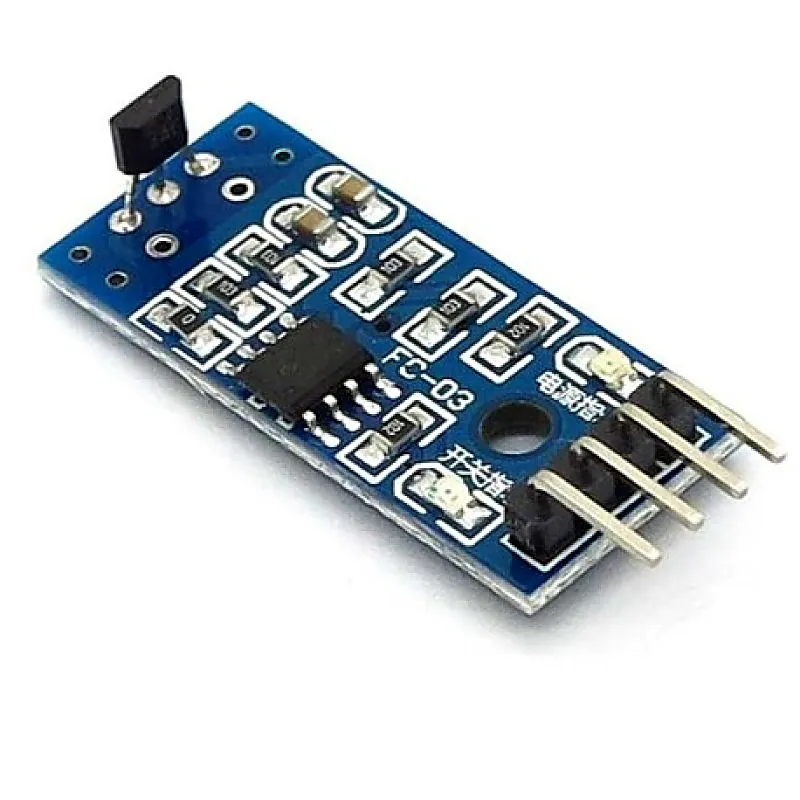

Hall Effect Sensor Module
Hall Effect Sensor Module
Description:- Hall Effect Sensor Module is used to Detect the proximity of a magnet. It is very much Smaller in size. When the magnetic field rises above a threshold level, the open-collector output transistor switches on, which pulls the logic-compatible output low and illuminates the on board LED
+ 18% GST (added at checkout)
In stock — 1546 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
Description:- Hall Effect Sensor Module is used to Detect the proximity of a magnet. It is very much Smaller in size. When the magnetic field rises above a threshold level, the open-collector output transistor switches on, which pulls the logic-compatible output low and illuminates the on board LED indicator. Its fast (The turn-on threshold is 35-450 Gauss, the minimum hysteresis is 20 Gauss, and the operating voltage range is 4.5 - 24 volts. This module uses the Allegro MicroSystems A3144EUA sensor. It has a 3 pin interface, signal, V+ and GND. To use this sensor/switch, place a 10K pull-up resistor between the "S" pin and the middle pin (+), connect the "-" pin to ground. Supply voltage to the middle pin. The "S" pin will go low (gets pulled to ground) and the on board LED indicator will turn on when a magnet is brought near.
