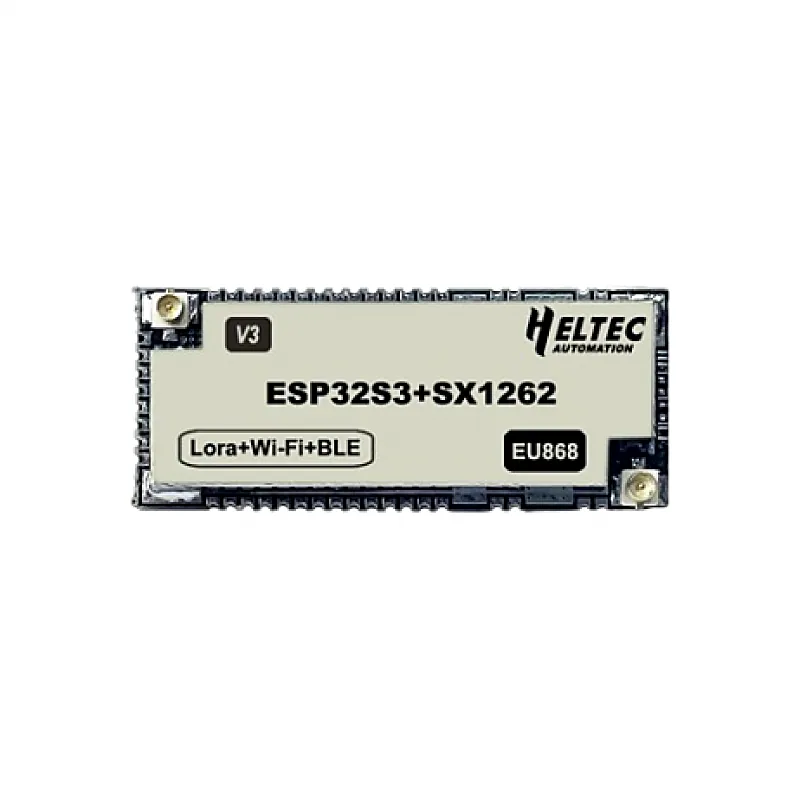

HELTEC Automation ESP32-S3 wireless shell compatible with Arduino module SX1262 LoRaWAN WIFI BLE V3 (433-510mhz)

HELTEC Automation ESP32-S3 wireless shell is a long communication range, high receive sensitivity, low power consumption(9uA) and low cost LoRa node module. The HTIT-Wsh is composed up of an MCU (ESP32-S3FN8) and Semtech LoRa Transceivers (SX1262). 38.4 x 16.1 x 3.2(mm) size with 1.27mm stamp holes package makes it can be assembled into your PCB or products directly. HTIT-Wsh is provide Wi-Fi, BLE and LoRa solution, perfectly support Arduino. Users can easily carry out secondary development and application. Features : CE Certificate; Microprocessor:ESP32-S3FN8 (Xtensa 32-bit LX7 dual core processor, five stage pipeline rack Structure, main frequency up to 240 MHz), with LoRa node chip SX1262; RF shielding (contain a shield shell) and other protection measures; Integrated WiFi, LoRa, Bluetooth network connections, both of them are IPEX socket; Support the Arduino development environment; (Exclusive) Supports the Arduino version of the ESP32 + LoRaWAN protocol routine provided by Heltec. This is a standard LoRaWAN protocol that can communicate with any gateway/base station running the LoRaWAN protocol (requires serial number activation, only the development of the company) The board is available, the serial number can be queried onthis page); With good RF circuit design and basic low-power design (sleep current: 9uA theoretically), it is convenient for IoT application vendors to quickly verify solutions and deploy applications. Package Includes: 1 x HELTEC Automation ESP32-S3 wireless shell compatible with Arduino module SX1262 LoRaWAN WIFI BLE V3 (433-510mhz)
