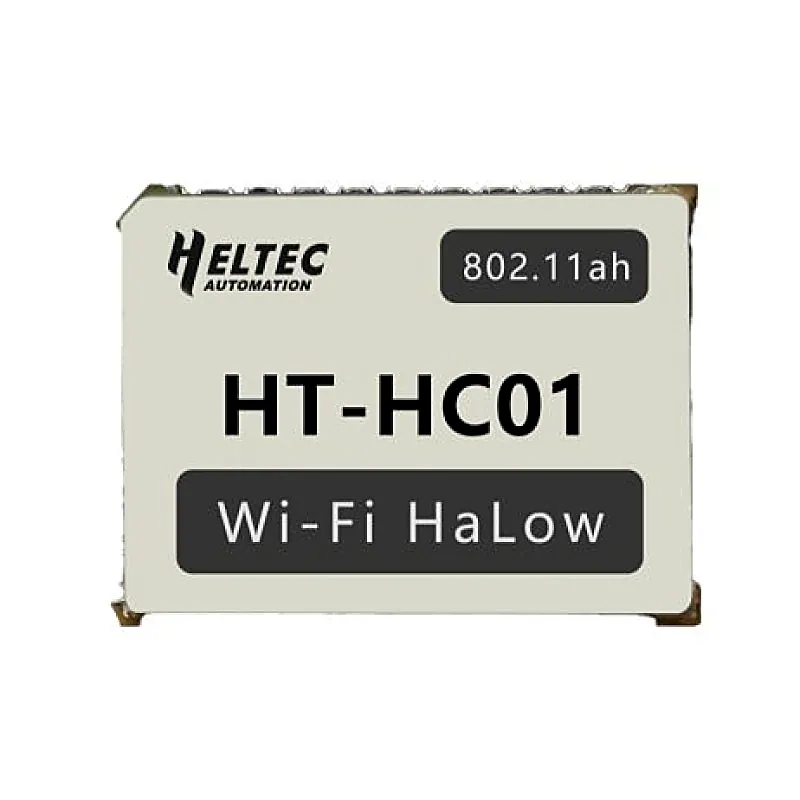

Heltec Automation HT-HC01 WiFi HaLow Module, operates in 902 928MHz

The Heltec Automation HT-HC01 WiFi HaLow module operates at 902928 MHz, delivering long-range connectivity up to 12 km and maximum data rates of 32.5 Mbps. Featuring LLC packaging, an integrated DC-DC converter, and support for SDIO 2.0 and UART interfaces, it simplifies Wi-Fi HaLow integration for IoT applications. Certified for IEEE 802.11ah, it offers ultra-low power consumption, robust security, and flexible bandwidth options, ideal for smart home, industrial, and remote monitoring uses. Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product. Features: Long-range transmission up to 12 km in line of sight Supports multiple channel bandwidths: 1/2/4/8 MHz High output power: 21 dBm with ultra-long range PA and high linear LNA Low power hibernate mode with internal/external wake IEEE 802.11ah MAC and OFDM PHY compliant, WFA HaLow certified Rich security features ensuring robust wireless communication Multiple interfaces including SDIO 2.0, dual UART for flexible connectivity Compact LLC package for easy PCB integration Onboard 1.14 inch TFT-LCD display for status indication Operating temperature: -40C to 85C, humidity tolerance 10%90% non-condensing Package Includes: 1 x Heltec Automation HT-HC01 WiFi HaLow Module, operates in 902 928MHz Attachments : Download
