HELTEC Automation Lora development Board SX1262 ASR6502 Node Solar charging IoT LoRaWAN V2 (433-510mhz)

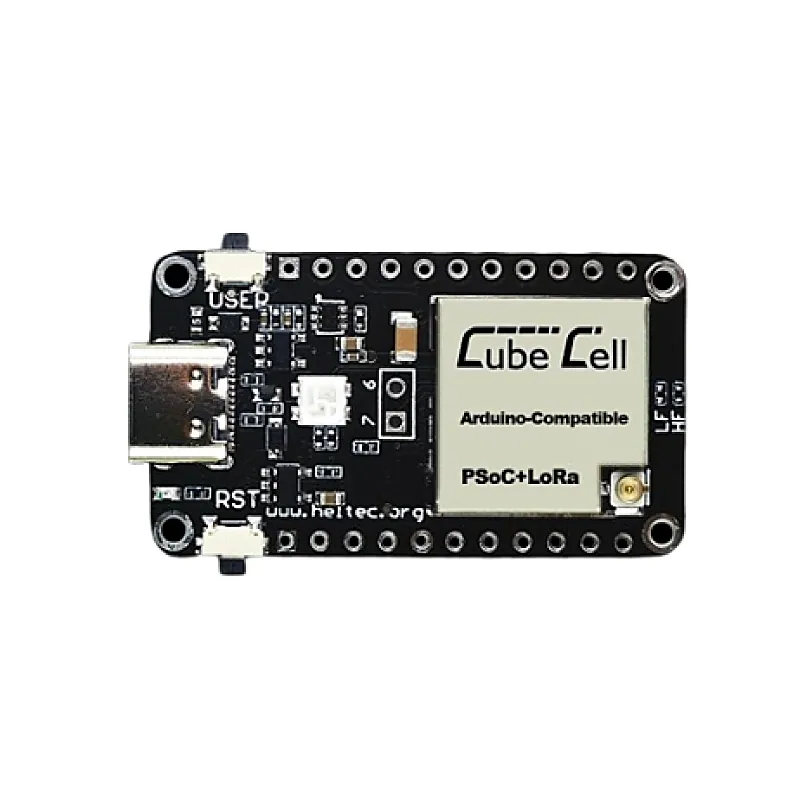

HTCC-AB01 (V2) belongs to Cubecell (TM) Series made by the Heltec team, mainly for LoRa/LoRaWAN node applications. HTCC-AB01 (V2) is based on ASR6052, the chip is already integrated with the PSoC 4000 series MCU (ARM Cortex M0+ Core) and SX1262. We have done a lot of migration and development, made it perfectly support Arduino, can run the LoRaWAN protocol stably, and can easily connect lithium batteries and solar panels. HTCC-AB01 (V2) is a Dev-Board. Which is an upgraded version of HTCC-AB01, and can pin-to-pin placement with the previous version. Features : Perfect Arduino-Compatible! CE and FCC certification; Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC 4000 series MCU (ARM Cortex M0+ Core) and SX1262; LoRaWAN 1.0.2 support; Ultra low power design, 3.5uA in deep sleep; Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching); Good impendence matching and long communication distance. Onboard solar energy management system, can directly connect with a 5.5~7V solar panel; Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures; Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing; Package Includes: 1 x Cubecell AB01 Dev-board 1 x Antenna 1 x SH1.252 Battery Connector
