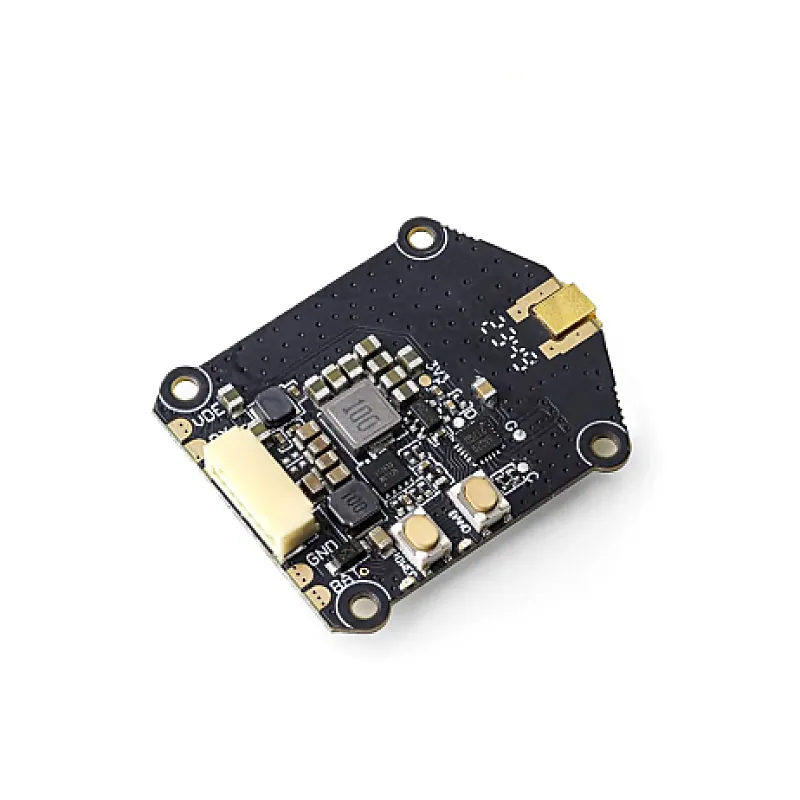

HGLRC 1.2G 1.6W VTX Module

The HGLRC 1.2G 1.6W VTX Module is a high-power video transmitter designed for FPV drone racing and long-range flights. With a frequency range of 1.2GHz and an output power of 1.6W, it delivers strong and stable video signals over extended distances. Its compact design and durable construction make it ideal for demanding FPV applications, ensuring reliable performance in diverse environments. Features : 1.IRC tramp PIT/10 /200 /1600MW 2. Press and hold the channel selection button for 1 second to switch CH 1-9 cycle. 3. Press and hold the power selection button for 1 second to switch the power to 10/200/1600 cycles. 4. Press and hold the power selection button for more than 2 seconds to switch between entering PITMODE and exiting PITMODE When using this product, please comply with local regulations and install the antenna before use Specifications : Input voltage:7-36V Working frequency:1.2G-1.3G Available channels:9-CH Maximum output power:1600m WMaximum size:37mm*30mm*8mm Mounting hole:25.5X25.5mm Number of channels9CH Frequency1080/1120/1160/1200/1240/1258/1280/1320/1360(MHz) Output power10 /200 /1600MW S/N(Fo3MHz)>70dBc Antenna Port50 Ohms Input formatNTSC or PAL Operating Temperature-10~+60 Package Includes: 1 x HGLRC 1.2G 1.6W image transmission module 1 x image transmission cable 1 x Angle MMCX-SMA female adapter cable 1 x 1.2G Y-shaped antenna
