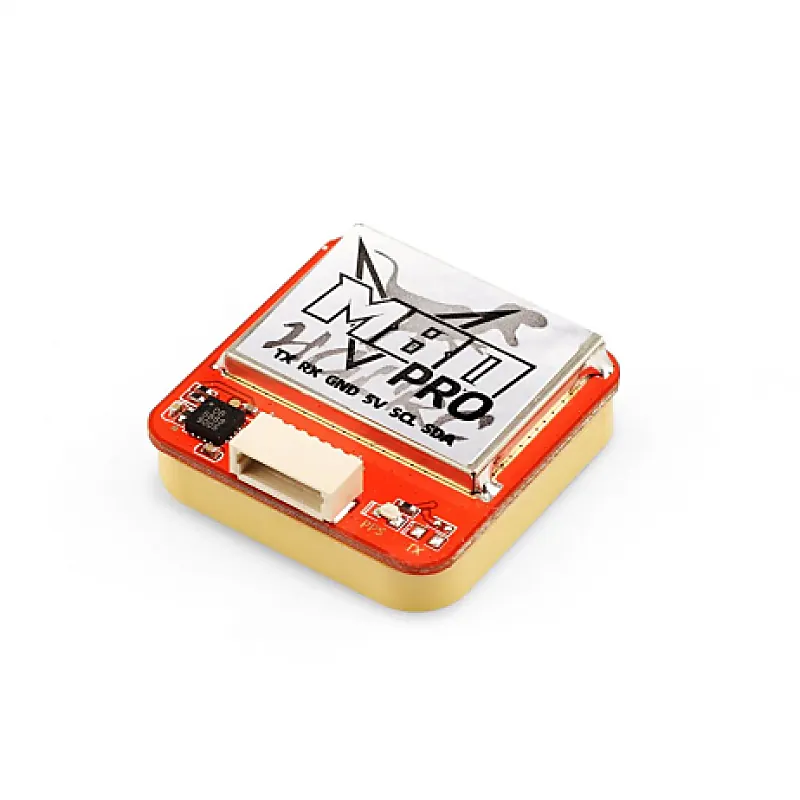

HGLRC M80 Pro GPS Module
HGLRC M80 Pro GPS Module
TheHGLRC M80 PRO GPS Module comes with a QMC5883 chip to help identify the location of your drone quickly. Receives a stronger antenna signal to make it easier to be found by satellites. No soldering needed just plug directly and use. TheHGLRC M80 PRO GPS Module is ideal for FPV racing drones! Featu
+ 18% GST (added at checkout)
In stock — 2 units ready
- High precision GPS for accurate positioning.
- Fast satellite acquisition for quick startup.
- Supports both GPS and GLONASS for reliability.
- Compact and lightweight design.
- Built-in compass for orientation.
- Item Name: HGLRC M80 PRO GPS
- Power Supply:5V
- Antenna: Ceramic Antenna
- Receiving Format: GPS,GLONASS,GLILEO,QZSS,SBAS,BDS
- Receiving Channel:72 Searching Channel
- Compass: QMC5883
- Support Rate:115200dps
- Output Frequency:1Hz-10Hz ,Default 10Hz
- Speed Precison:0.05 m/s
- Level Positioning Precison:2D ACC2.5m(ln Open Sky)
- Receiving Sensitivity: Trace -162dBm
- Capture-160dBm
- Dynamic Characteristics: Max Height:50000m
- Max Speed:500m/s
- Max Acceleration:4G
- Working Temperature:- 40-+85
- Storage Temperature:- 40-+105
- Size:25mm x 25mm x 8.3mm
- Weight:12.5g
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
TheHGLRC M80 PRO GPS Module comes with a QMC5883 chip to help identify the location of your drone quickly. Receives a stronger antenna signal to make it easier to be found by satellites. No soldering needed just plug directly and use. TheHGLRC M80 PRO GPS Module is ideal for FPV racing drones! Features: High precision GPS for accurate positioning. Fast satellite acquisition for quick startup. Supports both GPS and GLONASS for reliability. Compact and lightweight design. Built-in compass for orientation. Specifications : Item Name: HGLRC M80 PRO GPS Power Supply:5V Antenna: Ceramic Antenna Receiving Format: GPS,GLONASS,GLILEO,QZSS,SBAS,BDS Receiving Channel:72 Searching Channel Compass: QMC5883 Support Rate:115200dps Output Frequency:1Hz-10Hz ,Default 10Hz Speed Precison:0.05 m/s Level Positioning Precison:2D ACC2.5m(ln Open Sky) Receiving Sensitivity: Trace -162dBm Capture-160dBm Dynamic Characteristics: Max Height:50000m Max Speed:500m/s Max Acceleration:4G Working Temperature:- 40-+85 Storage Temperature:- 40-+105 Size:25mm x 25mm x 8.3mm Weight:12.5g Package Includes: 1 x HGLRC M80 Pro GPS Module
