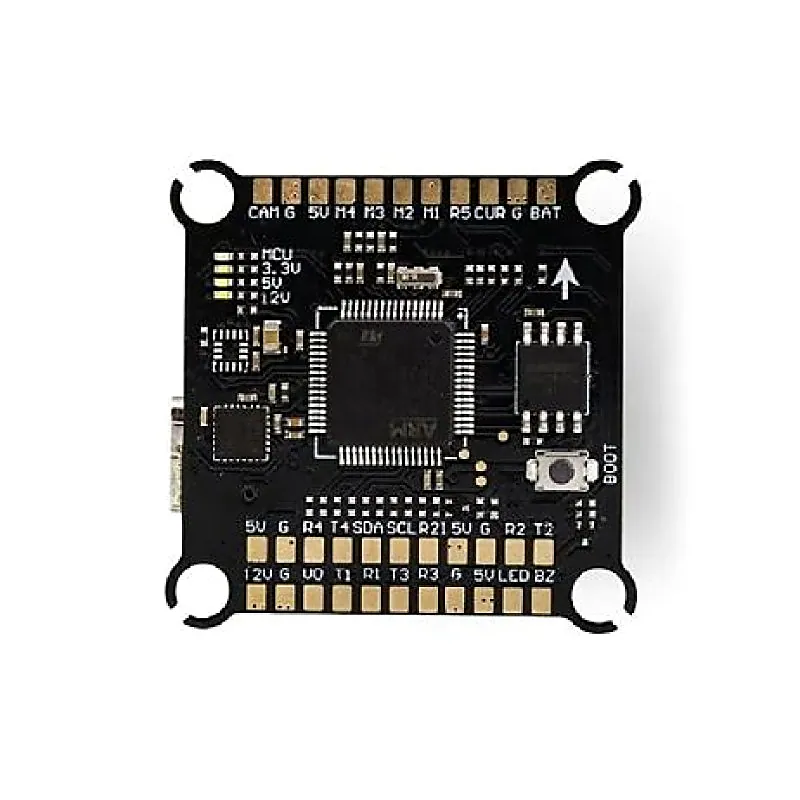

HGLRC Specter F405 Flight Controller
HGLRC Specter F405 Flight Controller
HGLRC Specter F405 is an affordable flight controller suitable for freestyle and racing drones. The controller is based on the F405 processor and the reliable MPU6000 gyro. The board has 16MB memory for black box, 10V and 5V BEC and OSD for analogue drones. On the underside, the board has connectors
+ 18% GST (added at checkout)
In stock — 3 units ready
- STM32F405 MCU (32-bit ARM Cortex-M4)
- MPU6000 Gyro
- Built-in OSD (On-Screen Display)
- Supports SBUS, PPM, DSMX receivers
- 5V/3A BEC (Battery Eliminator Circuit)
- Compatible with 2-6S LiPo batteries
- Processor: STM32F405
- IMU: MPU6000
- OSD: AT7456E
- Blackbox: 16MB
- Input voltage: 2-6S Lipo
- BEC: 10V@2A, [emailprotected]
- BF Target: SPEDIXF405
- Weight: 7.2g
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
HGLRC Specter F405 is an affordable flight controller suitable for freestyle and racing drones. The controller is based on the F405 processor and the reliable MPU6000 gyro. The board has 16MB memory for black box, 10V and 5V BEC and OSD for analogue drones. On the underside, the board has connectors for digital video transmission, RC receiver, LEDs, ESCs and FPV camera. This keeps the need for soldering to a minimum. Features : STM32F405 MCU (32-bit ARM Cortex-M4) MPU6000 Gyro Built-in OSD (On-Screen Display) Supports SBUS, PPM, DSMX receivers 5V/3A BEC (Battery Eliminator Circuit) Compatible with 2-6S LiPo batteries Specifications: Processor: STM32F405 IMU: MPU6000 OSD: AT7456E Blackbox: 16MB Input voltage: 2-6S Lipo BEC: 10V@2A, [emailprotected] BF Target: SPEDIXF405 Weight: 7.2g Package Includes: 1 x Flight controller 1 x Softmounts 1 x Cable Set
