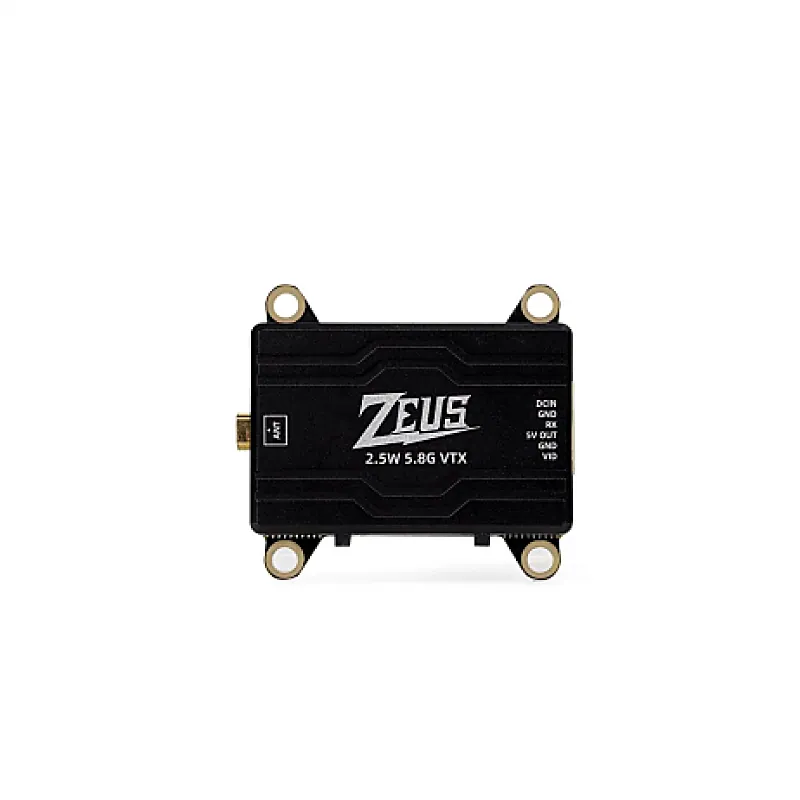

HGLRC ZEUS VTX 2.5W

The HGLRC ZEUS VTX 2.5W is a powerful video transmitter designed for FPV (First Person View) drones. With an output power of 2.5W, it ensures strong and reliable signal transmission over long distances. It supports various frequency bands and has smart audio control for easy channel switching. Ideal for competitive racing and freestyle drone flying. Features : The actual measured distance when flying near a lake is 9 kilometers under interference in urban environment, and it can easily fly more than 10 kilometers in suburban/mountainous environment. 2500mW high power, maintaining sufficient power output, suitable for long range and ultra-long distance flights. 6 power levels adjustable PIT/25mW/200mW/800mW/1600mW/2500mW. CNC integrated upper and lower shell covering structure, strong heat dissipation effect, maintaining stable performance. Dual-function buttons make parameter adjustment easier, and 3 sets of LED indicators display power/frequency group/frequency points at a glance. Supports IRC Tramp protocol OSD parameter adjustment. Supports 2-6s (7-26V) wide voltage input. Supports 30.530.5 M3 hole installation. Specifications : Support voltage: DC 7-26V (2-6S) BEC: 5V/800mA Antenna interface: MMCX Cable interface: GH1.25 6P Video format: PAL/NTSC Standard 40 channels: A/B/E/F/R frequency group Protocol: IRC Tramp Output power: PIT/25/200/800/1600mW/2500mW PitMode/0dbm 2.5W/33.98dBm Installation hole position: 30.5*30.5*M3 Dimensions (L*W*H): 40mm x 35mm x 11.8mm Weight: 19.6g Package Includes: 1 x Zeus VTX 2.5W 1 x MMCX 80mm copper tube antenna 1 x MMCX to SMA 100mm adapter 1 x GH1.25 6Pin 100mm single-ended cable 1 x SH1.0 4Pin-GH1.25 6Pin 60mm double-ended cable
