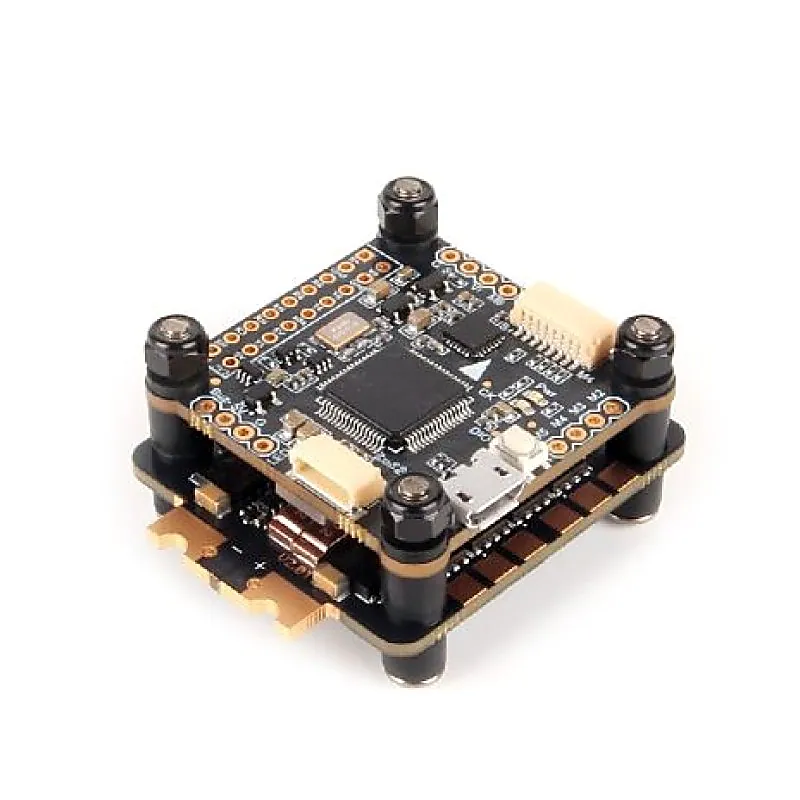

Holybro Kakute F4 V2.4 Stacks + Tekko32 F4 4in1 60A ESC

The Holybro Kakute F4 V2.4 Flight Controller includes plug-and-play DJI O3 HD camera plug, 4in1 ESC ports, barometer, OSD, 5x UARTs, logging capability with built-in flash , 5V and 9V/3A BEC, easy soldering layout and much more. The Kakute F4 V2.4 is DJI HD ready. It has an easy plug-and-play port with an on-board 9V/A regulator designed to power your HD video transmitter like DJI O3 Air Unit & Caddx Vista while supporting analog system. It has 5x dedicated UART ports with built-in inversion for peripherals. It is also ready for autonomous flight with the on-board barometer. There are LED & buzzer pad, I2C pad (SDA & SCL) for external GPS/Magnetometers. Features: New and fasterF4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz) PWM Frequency: 16k to 96k Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit. Supports DShot 150/300/600/1200/2400 Supports MultiShot/OneShot/Proshot/PWM etc. ESC telemetry Supported Onboard analog current sensor BLHeli_32 firmware 1000uf 35v capacitor included (highly recommended for 6s setup) Amperage meter scale ratio: 120 Package Includes: 1x Holybro Kakute F4 V2.4 Stacks + Tekko32 F4 4in1 60A ESC 1x Electrolytic capacitor: 1000uF 35v 1x 8pin to 8pin 1mm pitch 65mm cable 1x 8pin to 8pin 1mm pitch 25mm cable 1x JSTSH6pin to JST GHR 8pin 80mm &150mm cable (for DJI/Caddx HD System) 1x JSTSH 6pin 100mm cable(for Caddx HD Systems)
