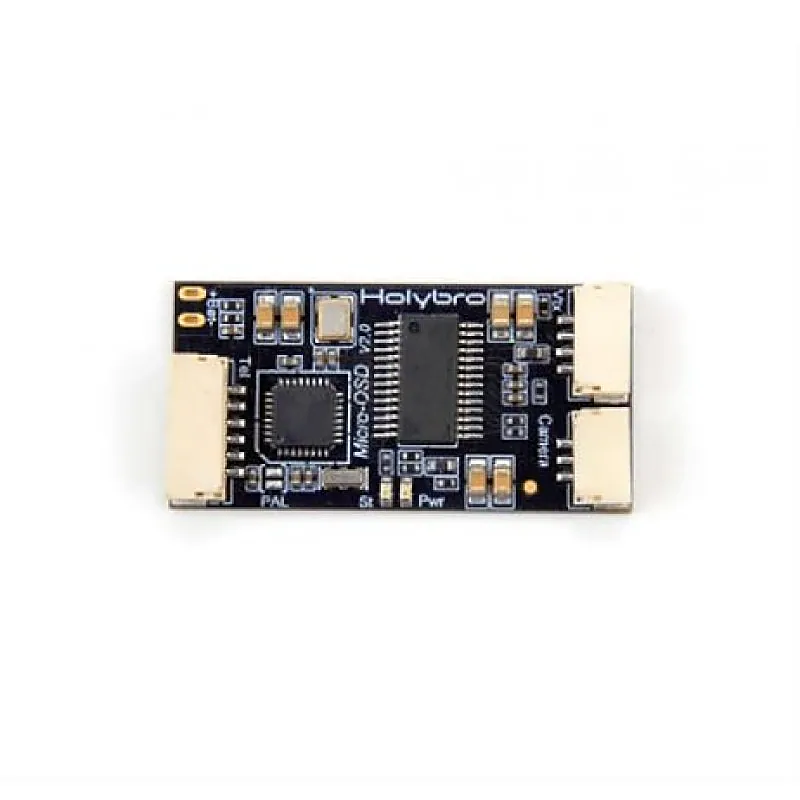

Holybro Micro OSD V2

This OSD (On-Screen-Display) is designed to connect with modern Pixhawk-style flight controllers to provide an on-screen display that will allow you to monitor key flight characteristics including battery voltage and flight duration during your FPV flight in real-time. The module is plug-and-play with the Holybro Pixhawk 4 Series (Full & Mini) and Holybro Durandal flight controllers and comes preconfigured to show basic info. You can also connect the OSD to software to configure the layout and operation of the OSD (FTDI programmer required). Features : Holybro Micro OSD V2. Compact on-screen display module. Real-time flight data overlay. Voltage, altitude, flight mode, etc. Configurable through flight controller. Supports PAL/NTSC video systems. Enhances FPV flying experience. Specifications : ATmega328P with Arduino bootloader MAX7456 monochrome on-screen display Standard 6-pin ISP header Solder jumper for PAL video option Exposed test points for HSYNC and LOS Dimensions:17.5*35mm Weight: 8g Package Includes: 1 x Micro OSD 1 x GH 6P cable 1 x GH 4P cable 1 x GH 3P cable
