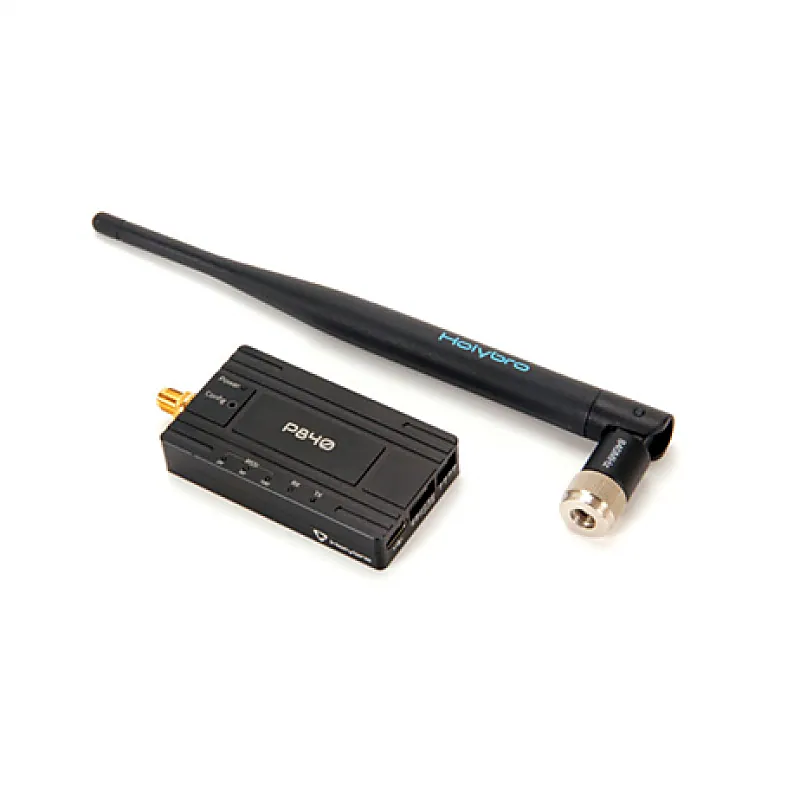

Holybro Microhard Telemetry Radio P840 (Only One Radio)

Holybro Microhard Telemetry Radio P840 (Only One Radio)
Holybro Microhard Radio integrates microhard Pico Series RF module which is capable of delivering high-performance wireless serial communications in robust topologies, such as Point to Point, Point to Multipoint and secure Mesh (Mesh not available on P840). It uses frequency hopping spread spectrum
+ 18% GST (added at checkout)
In stock — 1 units ready
- USB Type-C port, integrated USB to UART converter
- 6-position JST-GH connector, can be directly connected to the TELEM port on various flight controller
- High voltage BEC onboard, Support DC7~35V voltage supply
- UART transmission LED indicator
- Three-stage RSSI LED indicator
- Transmission within a public, license-exempt band of the radio spectrum
- Transparent, low latency link rates up to 276 kbps
- Supports a robust true Mesh operation with auto-routing
- 32 bits of CRC, selectable retransmission and forward error correction
- Separate diagnostics port, transparent remote diagnostics and online network control
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
Holybro Microhard Radio integrates microhard Pico Series RF module which is capable of delivering high-performance wireless serial communications in robust topologies, such as Point to Point, Point to Multipoint and secure Mesh (Mesh not available on P840). It uses frequency hopping spread spectrum (FHSS) technology, providing reliable wireless asynchronous data transfer between most equipment types which employ a serial interface. Fixed frequency is available on the P840 version. The radio is configured using AT commands through the Data port or using PicoConfig application through the Diagnostic Port. P900 Radio operate within the 902-928 MHz ISM frequency band while the P840 Radio operate within the 840-840Mhz. You can select your radio based on your countrys available frequency band. Features: USB Type-C port, integrated USB to UART converter 6-position JST-GH connector, can be directly connected to the TELEM port on various flight controller High voltage BEC onboard, Support DC7~35V voltage supply UART transmission LED indicator Three-stage RSSI LED indicator Transmission within a public, license-exempt band of the radio spectrum Transparent, low latency link rates up to 276 kbps Supports a robust true Mesh operation with auto-routing 32 bits of CRC, selectable retransmission and forward error correction Separate diagnostics port, transparent remote diagnostics and online network control Package Includes: 1x Microhard P840 1x Antenna 1x XT30 Power cable 1x GH 6P to 6P cable 1x Metal Pin
