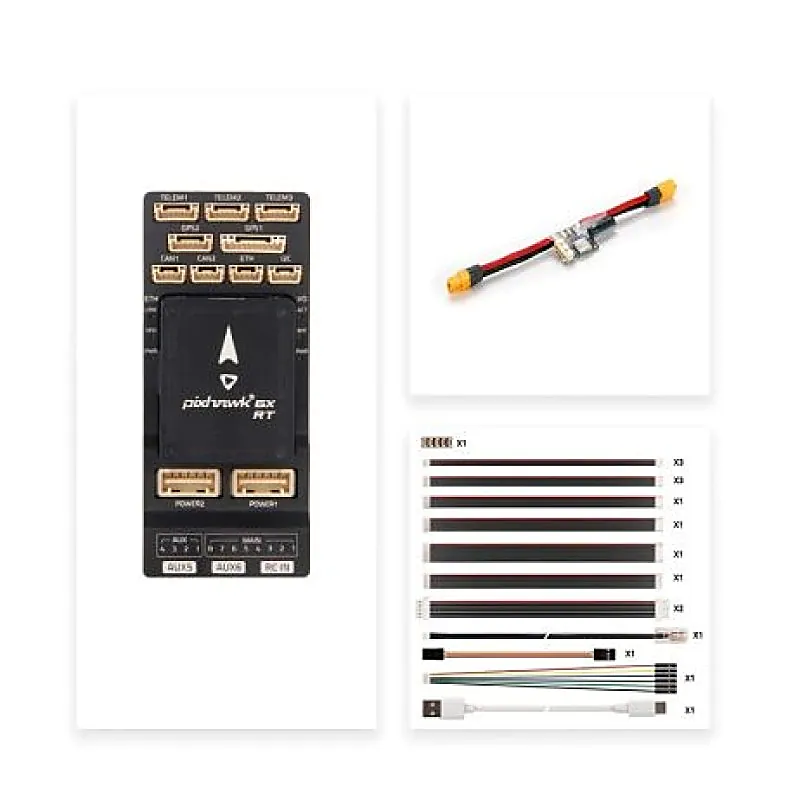

Holybro Pixhawk 6X-RT Standard Set v2A

The Pixhawk 6X-RT, based on the FMUv6X-RT Open Standard, features an i.MXRT1176 MCU with Arm Cortex-M7 at 1 GHz and Cortex-M4 at 400 MHz. It has 2MB SRAM, 64MB Flash, and uses Bosch and InvenSense sensors for reliable control. The controller includes triple redundant IMUs, double redundant barometers, and a vibration isolation system for enhanced stability. It supports high-speed Ethernet communication and is ideal for developers in research, academia, and commercial applications. Compatible with Pixhawk baseboards and integrates seamlessly with PX4 Autopilot. Features: Dual-core i.MXRT1176 Processor: Cortex-M7 @ 1GHz and Cortex-M4 @ 400MHz for high performance. Modular Flight Controller: Separated IMU, FMU, and Base system with Pixhawk Autopilot Bus connectors (100-pin & 50-pin). Sensor Redundancy: 3x IMUs and 2x barometers on separate buses for fail-safe operation. Triple Redundancy Domains: Isolated sensor domains with independent buses and power control. Vibration Isolation System: Filters high-frequency vibrations to ensure accurate sensor readings. Ethernet Interface: Enables high-speed integration with mission computers. Temperature-controlled IMUs: Onboard heating resistors maintain optimal IMU working temperature. Hardware Secure Element: NXP EdgeLock SE051 for enhanced security, supporting field applet updates and certified protection against advanced cyber threats. Applications: Autonomous vehicles (drones, rovers) Industrial/commercial UAVs (agriculture, inspection, delivery) Research & development (academic, corporate labs) High-performance systems requiring sensor redundancy and fast communication Package Includes: 1 x Pixhawk 6X-RT Flight Controller Module 1 x Pixhawk Standard Baseboard v2A 1 x PM02D HV Power Module 1 x Cable Set
