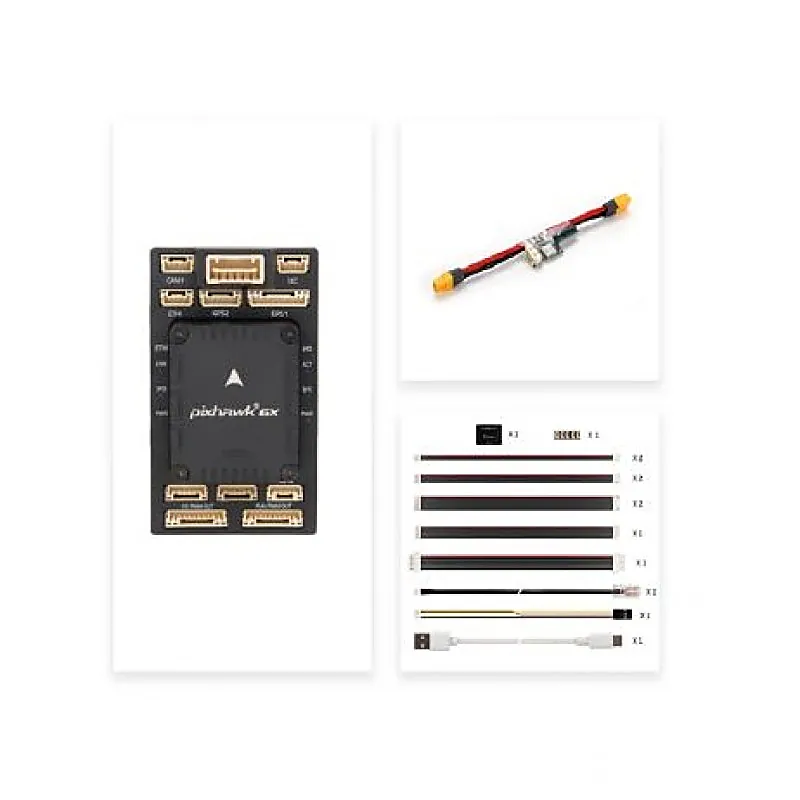

Holybro Pixhawk 6X(Rev8) Mini Set

The Holybro Pixhawk 6X Mini Set offers exceptional reliability and performance with triple redundancy, featuring three ICM-45686 IMU sensors with BalancedGyro technology and two barometer sensors. Powered by the high-performance STM32H753 processor (480 MHz), it supports fast computations and efficient data processing. This new vibration isolation design uses the same custom-formulated durable isolation material as the Pixhawk 6X Pro, instead of the traditional foam design. Backed by extensive R&D and testing, it offers optimal IMU damping characteristics with a resonance frequency in the higher spectrum, perfect for industrial and commercial drone. Features: Redundancy: 3x ICM-45686 IMU sensors (32g) with BalancedGyro technology & 2x Barometer sensors High performance STM32H753 Processor with a clock speed of up to 480 MHz Modular flight controller: separated IMU, FMU, and Base system connected by a 100-pin & a 50-pin Pixhawk Autopilot Bus connector. Triple redundancy domains: Completely isolated sensor domains with separate buses and separate power control All New advanced durable vibration isolation material with resonance frequency in the higher spectrum Ethernet interface for high-speed mission computer integration. Transformerless can be achieved using 50 Ohm termination resistors at the target device (AN2190 50 Ohm termination). Temperature-controlled IMU board, allowing optimum working temperature of IMUs Applications: Ideal for drones, ground, and marine vehicles. Used in surveying, agriculture, and surveillance. Supports disaster response and search-and-rescue missions. Perfect for research, industrial, and custom robotics projects. Package Includes: 1 x Pixhawk 6X Flight Controller Module 1 x Mini Baseboard 1 x PM02D HV Power Module 1 x Cable Set
