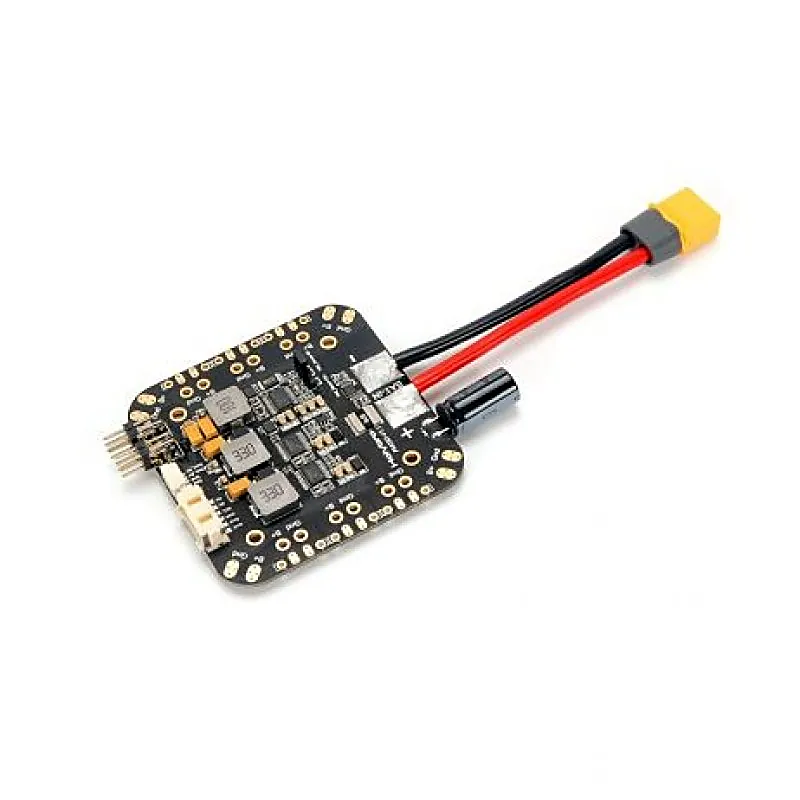

Holybro PM03D Power Module (Without XT30 Pre-soldered)

PM03D provides regulated power supply as well as current consumption and battery voltage measurements via I2C digital protocol all through a 6pin 2.00mm CLIK-Mate cable. Compatible to flight controller that uses I2C power monitor such as the Pixhawk 5X and up. It is design for multi-rotor like the X500 V2. It has both XT-30 connectors preinstalled for motor ESCs and Battery, as well as two 5V BEC and a selectable 8V/12V output different kinds of peripheral devices. Note Full setup guide can be found here. This PM uses I2C digital signal data output, Compatible with Pixhawk 5X/6X Series. NOT compatible with flight controller that uses analog PM such as the Pixhawk 6C & Mini, Pixhawk4 & Mini, pix32 v5, or Durandal flight controllers. Power Module Comparison Table Useful link: For setting the module refer to the link. Features: Plug & play, no additional setup required for QGroundcontrol & Mission Planner XT-30 connectors and solder pads for easy motor ESC connection Onboard voltage regulators: two 5.2V & one selectable 8V/12V 5V/A ports for powering companion computer or peripheral device Selectable 8V or 12V triple row pin header for powering peripheral device Package Includes: 1x PM06 board 1x 80mm XT30 connector wire (pre-soldered) 1x Electrolytic capacitor: 220uF 63V (pre-soldered) 1x 2.0mm pitch CLIK-Mate 6pin cable (To power flight controller) 1 x 4pin JST GH to USB Type C 1 x 4pin JST GH to barrel plug (2.1*5.5mm) 1 x 4pin JST GH to barrel plug (2.5*5.5mm) 1 x 3pin Pin Dupont Cable (2pc) 1x Nylon standoffs & nuts
